Product Summary

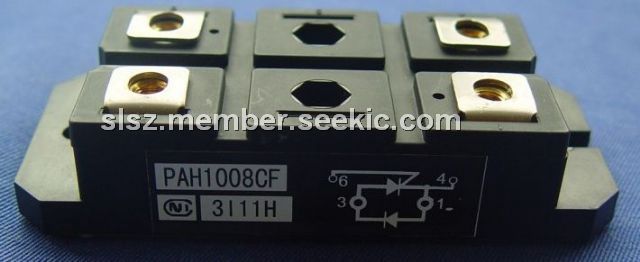

The PAH1008CF is a thyristor module.
Parametrics
PAH1008CF absolute maximum ratings: (1)Repetitive Peak Off-State Voltage: 800 V; (2)Non Repetitive Peak Off-State Voltage: 960 V; (3)RMS On-State Current: 222 A; (4)Surge On-State Current: 2000 A; (5)I Squared t: 20000 A2s; (6)Critical Rate of Turned-On Current: 100 A/μs; (7)Peak Gate Power: 5 W; (8)Average Gate Power: 1 W; (9)Peak Gate Current: 2 A.
Features
PAH1008CF features: (1)Isolated Base; (2)Dual Thyristors or Thyristor and Diode Anti-Parallel Circuit; (3)High Surge Capability; (4)UL Recognized, File No. E187184.
Diagrams
 |
