Product Summary

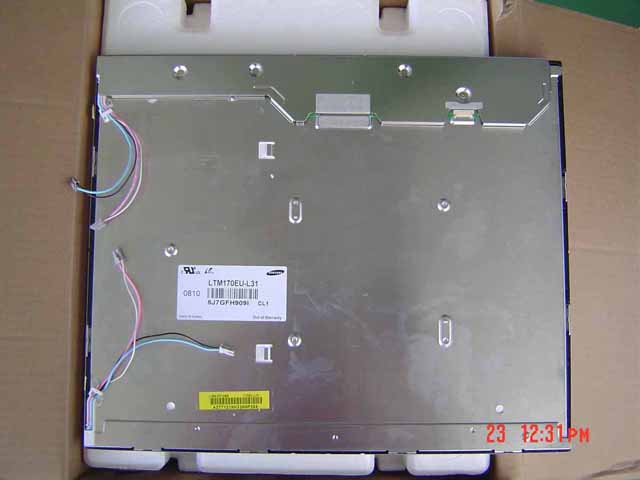

The LTM170EU-L31-1 is a kind of color active matrix liquid crystal display (LCD) that uses amorphous silicon TFT (Thin Film Transistor) as switching components. It includes a TFT LCD panel, a driver circuit and a back light unit. The resolutio of a 17.0 is 1280×1024 and this model can display up to 16.7 millions colors. The typical applications include: workstation and desktop monitors; display terminals for AV application products; monitors for industrial machine.

Parametrics

Absolute maximum ratings: (1)Power Supply Voltage, VDD: GND-0.5 to 6.5 V; (2)Data Signal, Vsig: 5 V max; (3)Storage temperature, TSTG: -25 to 60℃; (4)center of glass surface temperature (operation), TOPR: 0 to 50℃; (5)Shock (non-operating), Snop: 50G max; (6)vibration (non-operating), Vnop: 1.5G max.

Features

Features: (1)RoHS compliance (Pb-free); (2)high contrast ratio, high aperture ratio, fast response time; (3)TN (Twisted Nematic) mode; (4)2 dual CCFTs (Cold Cathode Fluorescent Tube); (5)DE (Data Enable) mode; (6)LVDS (Low Voltage Differential Signaling) interface (2 pixel/clock); (7)compact size design; (8)TCO 03 compliance.

Diagrams
