Product Summary

The G065VN01 is a kind of display which is intended for industrial display applications with VGA (640 x RGB x 480) resolution and 16.2M (RGB 6-bits + FRC) or 262k colors (RGB 6-bits). It includes a TFT-LCD panel, driver ICs, control and power supply circuits board and a backlight unit including LED driving circuit. In addition, the G065VN01 provides LVDS interface for display signal input.

Parametrics

Absolute maximum ratings: (1)Logic/LCD Drive Voltage, VDD: -0.3 to +4.0 Volt when Ta= 25℃; (2)LCD Input Signal Voltage, VIN: -0.3 to +4.0 Volt when Ta= 25℃; (3)LED BLU Drive Voltage, VLED: 0 to 25 Volt when Ta= 25℃; (4)LED Dimming Input Voltage, VPWM: 0 to 6 Volt when Ta= 25℃.

Features

Features: (1)Screen Diagonal: 6.5 inch; (2)Active Area: 132.48(H) x 99.36(V) mm; (3)Pixels H x V: 640x3(RGB) x 480; (4)Pixel Pitch: 0.207 x 0.207 mm ; (5)Pixel Arrangement: R.G.B. Vertical Stripe; (6)Display Mode: TN, Normally White; (7)Nominal Input Voltage VDD: 3.3 Volt typ; (8)Typical Power Consumption: 3.9W (LCD:0.9W/LED BLU: 3.0W), All black pattern; (9)Electrical Interface 1 channel LVDS; (10)Surface Treatment: Glare, AR, Hardness: 3H; (11)Support Color: 16.2M / 262K colors; (12)The most suitable view angle: 6 o clock.

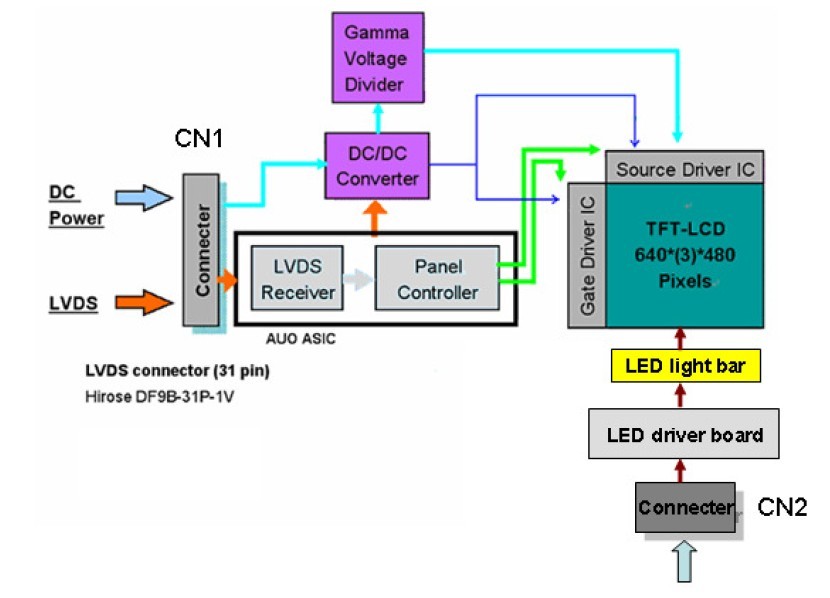

Diagrams
