G104SN03-V1

Color Active Matrix Liquid Crystal Display; typical power consumption: 3.3 W; nominal input voltage VDD: 3.3 V typ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $300.00~400.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $300.00~400.00

PartNumber:: G104SN03-V1

Brand:: NEC - Nec | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Huang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-01-12

From Other Seller

Part Number:G104SN03-V1
US $300.00 - 400.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

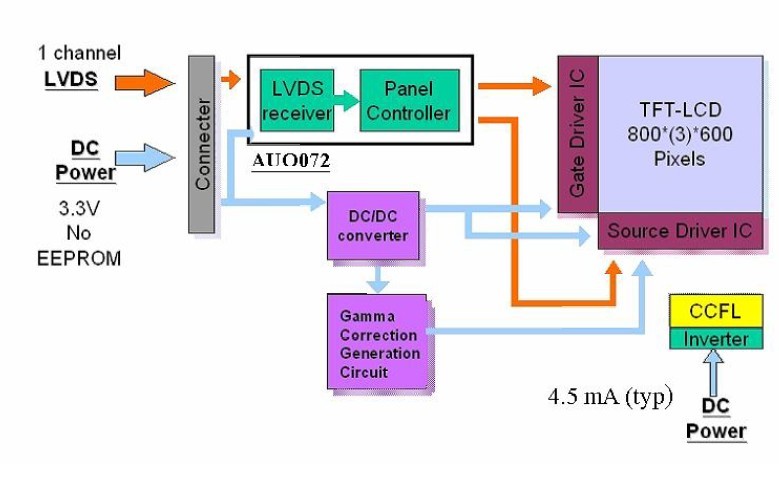

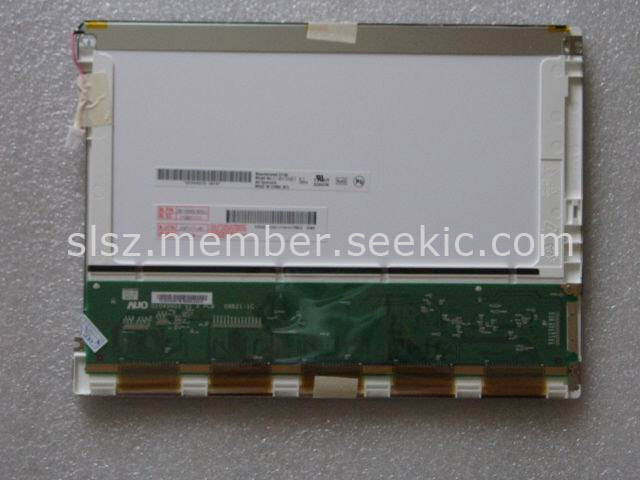

The G104SN03-V1 is a kind of Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver circuit, and a backlight system. The screen format is intended to support SVGA (800(H) x 600(V)) screen and 262k colors (RGB 6-bits). All input signals are LVDS interface compatible. Inverter card of backlight is not included. The device is intended for industrial display applications.

Parametrics

Specifications: (1)screen diagonal: 10.4 inch; (2)active area: 211.2 (H) x 158.4 (V); (3)pixel H x V: 800x3(RGB)x600; (4)pixel pitch: 0.264 x 0.264mm; (5)pixel arrangement: RGB vertical stripe; (6)display mode; TN, normally white; (7)nominal input voltage VDD: 3.3 V typ; (8)typical power consumption: 3.3 W; (9)weight: 300g typ; (10)physical size: 236.0 (H) x 174.3 (V) x 5.6 (D) typ; (11)electrical interface: 1 channel LVDS; (12)surface treatment: anti-glare, hardness 3H; (13)support color: 16.2M/262k colors; (14)temperature range: operating: -20 to +70℃; storage (non-operating): -30 to +80℃.

Features

Features: (1)White Luminace: 230 cd/m2; (2)Contrast Ratio: 500:1; (3)Response time: 35 msec; (4)Viewing angle (U/D/R/L): 55/65/70/70 degree; (5)RoHS Compliance.
