Product Summary

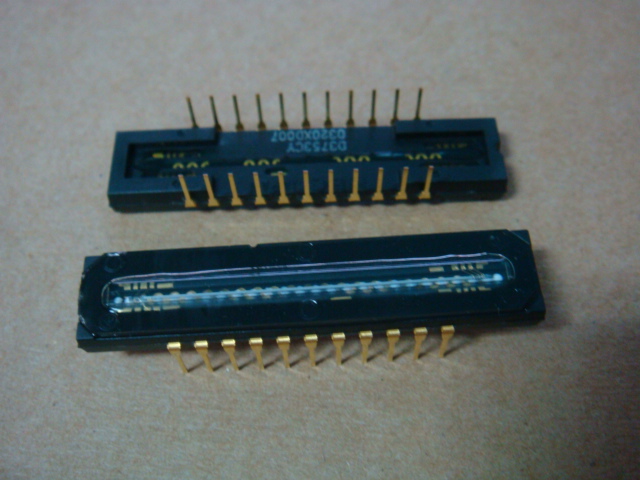

The UPD3753CY is a kind of 2088-bit high sensitivity CCD (Charge Coupled Device) linear image sensor which changes optical images to electrical signal. The device includes 2088-bit photocell array and a line of 2088-bit CCD charge transferred register.It contains a reset a feed-through level clamp circuit, a pulse generator, and a voltage amplifier to provide high sensitivity and low noise. It also supports low power consumption with single 5 V power supply. Besides, it can be driven by power supply and three input clocks owing to the built-in reset pulse generator
and a clamp pulse generator.
Parametrics
Absolute maximum ratings: (1)Output unit drain voltage, VOD: –0.3 to +8 V; (2)Shift register clock voltage, Vφ1, φ2: –0.3 to +8 V; (3)Transfer gate signal voltage, VφTG: –0.3 to +8 V; (4)Operating ambient temperature, Topt: –25 to +60℃; (5)Storage temperature, Tstg: –40 to +70℃.
Features
Features: (1)Valid photocell : 2088-bit; (2)Photocells pitch : 14 mm; (3)High response sensitivity : Providing a response equal with the existing equivalent NEC product (UPD3743) to the light from a daylight fluorescent lamp; (4)Low noise : Providing about two thirds register imbalance of the existing equivalent NEC product (UPD3743); (5)Peak response wavelength : 550 nm (green); (6)Resolution : 8 dot/mm across the shorter side of a B4-size (257× 364 mm) sheet; (7)Power supply : +5 V; (8)Drive clock level : CMOS output under +5 V operation; (9)Scanning speed : 1.0 ms/line; (10)Built-in circuit : Reset feed-through level clamp circuit, reset pulse generator, clamp pulse generator.

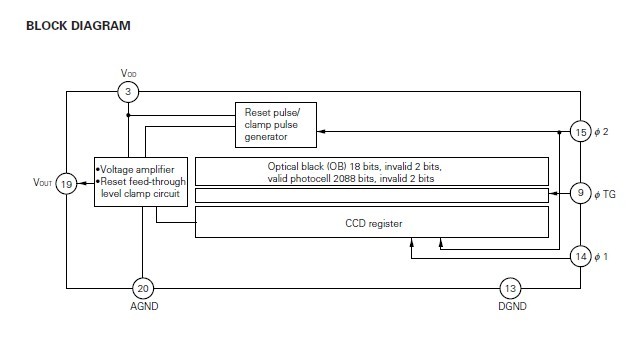

Diagrams
 |
