Product Summary

The G070Y2-T02 is a 7inch TFT Liquid Crystal Display module with a LED backlight unit and a-60-pin-and-1ch-TTL interface. TCON (timing controller) is included in driver IC. This module supports 800 (R.G.B )× 480 WVGA mode which main application is the automotive display and industrial field. The applications of the G070Y2-T02 include: automotive Display, industry Application.

Parametrics

G070Y2-T02 absolute maximum ratings: (1)Operating Ambient Temperature TOP: min=-30℃, max=+85℃; (2)Storage Temperature TST: min=-40℃, max=+95℃; (3)Power Supply Voltage VCC: min=-0.3V, max=7V; VDDG: min=-0.3V, max=7V; AVDD: min=-0.3V, max=13.5V; VGH: min=-0.3V, max=42V; VGL: min=VGH-42, max=0.3V; (4)Digital Input Voltage VI: min=-0.3V, max=VCC +0.3V ; (5)Gamma Supply Voltage V1~V10: min=-0.3V, max=AVDD+0.3V.

Features

G070Y2-T02 features: (1)Wide viewing angle; (2)Fast response time; (3)High Color Gamut; (4)Wide operating temperature; (5)Reversible - scan function; (6)6/8 bit convertible.

Diagrams

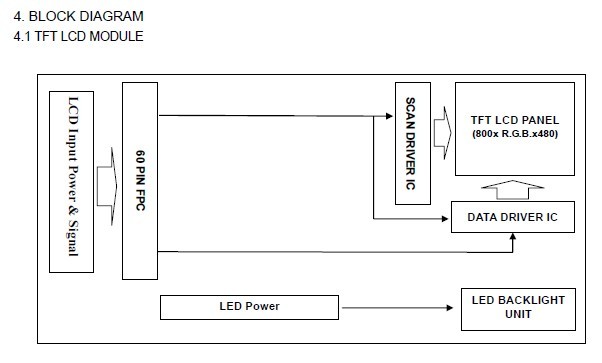

G070Y2-T02 block diagram
