Product Summary

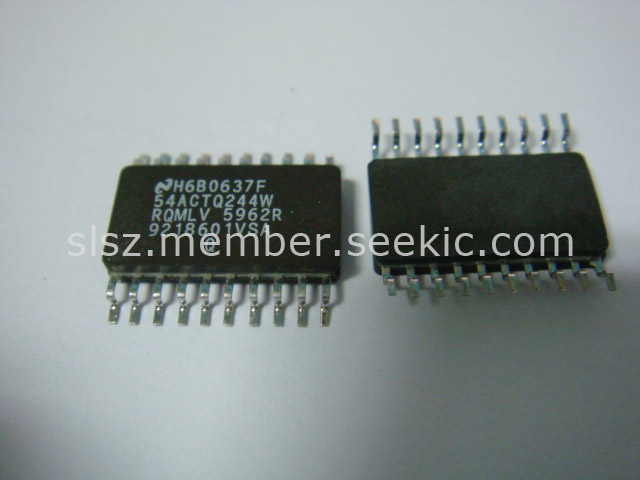

The 54ACTQ244 is a kind of line driver. It is designed to be employed as a memory address driver, clock driver and bus oriented transmitter or receiver. It provides improved PC board density. The device utilizes NSC Quiet Series technology to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet Series features GTO output control and undershoot corrector in addition to a split ground bus for superior performance.
Parametrics
Absolute maximum ratings: (1)Tj : 125℃; (2)Supply voltage, Vcc: 3.9 V; (3)Maximum voltage applied to signal pins: 5.5 V; (4)Maximum power, PWC: 1.2 W @ 33 MHz; (5)Storage temperature range, Tstg: –55℃ to 125℃.
Features
Features: (1)ICC and IOZ reduced by 50%; (2)Guaranteed simultaneous switching noise level and dynamic threshold performance; (3)Improved latch-up immunity; (4)TRI-STATE outputs drive bus lines or buffer memory address registers; (5)Outputs source/sink 24 mA; (6)Faster prop delays thathe standard ’AC/’ACT244; (7)4 kV minimum ESD immunity.

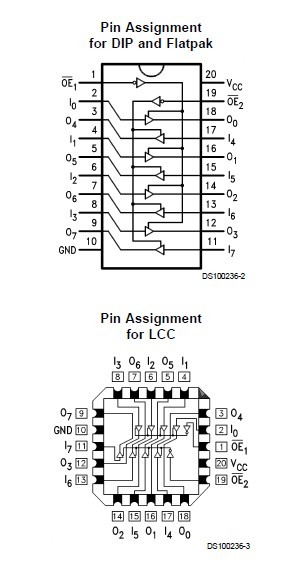

Diagrams
 |
