Product Summary

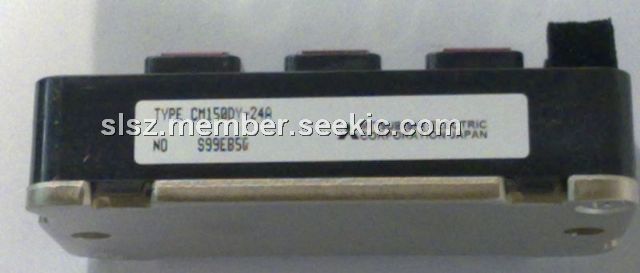

The CM150DY-24A is a MITSUBISHI IGBT module which is used for high power switching.
Parametrics
CM150DY-24A absolute maximum ratings: (1)Collector-emitter voltage: 1200 V; (2)Gate-emitter voltage: ±20 V; (3)Maximum collector dissipation: 960 W; (4)Junction temperature: -40 to +150℃; (5)Storage temperature: -40 to +125℃; (6)Isolation voltage: 2500 Vrms; (7)Torque strength: 2.5 to 3.5 Nm.
Features
CM150DY-24A features: (1)IC: 150A; (2)VCES: 1200V; (3)Insulated Type; (4)2-elements in a pack.

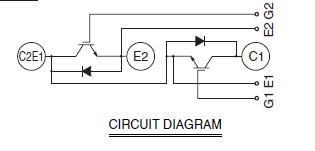

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM150DY-24A |
|
IGBT MOD DUAL 1200V 150A A SER |
Data Sheet |
Negotiable |
|
||||
