Product Summary

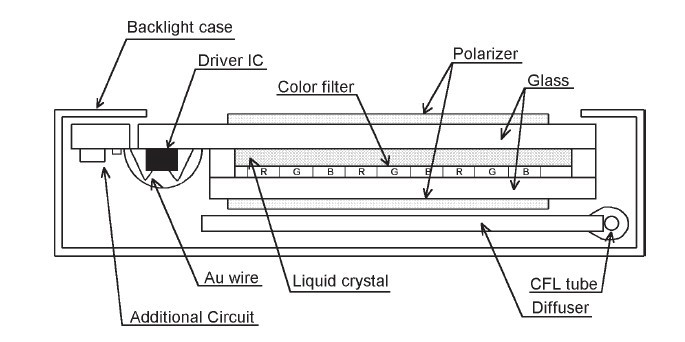

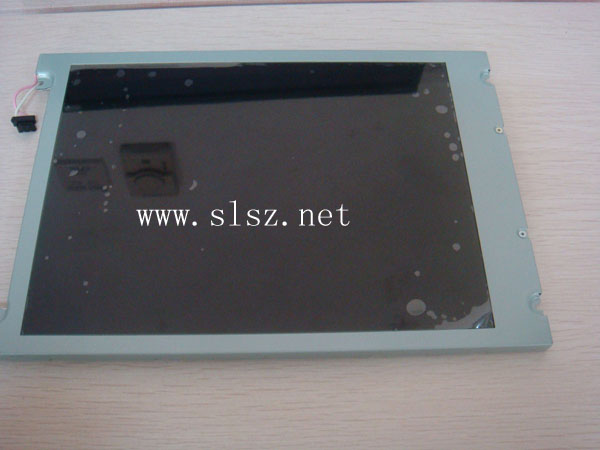

The KCB104VG2CA-A43 is a kind of (640 x 3) x 480 dot, STN color, dot matrix type Liquid Crystal Display with CFL backlight. It is designed for Industrial Machine, POS, ATM, bank terminal, vending machine and parking system. Then is about the construction: (1)Backlight system: Side-edge type CFL (2 tubes); (2)Inverter: Optional; (3)Recommended Inverter: KCI-13 (Minebea Electronics); (4)Polarizer: Anti-Glare treatment; (5)Additional Circuit: Bias voltage circuit, Randomizing circuit DC/DC Converter.

Parametrics

Absolute maximum ratings: (1)Supply voltage for logic, VDD: 0 to 6.0 V; (2)Supply voltage for LCD driving, VCONT: 0 to VDD V; (3)Input signal voltage, Vin: 0 to VDD+0.3 V; (4)Operating temperature, Top: 0 to 50℃; (5)Storage temperature, Tsto: -20 to 60℃.

Features

There are some features as follows: (1)Brightness: 160(cd/m ) 2; (2)Long Life CFL: 40,000(h); (3)Field Replaceable CFL; (4)Operating Temperature: 0 to 50℃.

Diagrams
