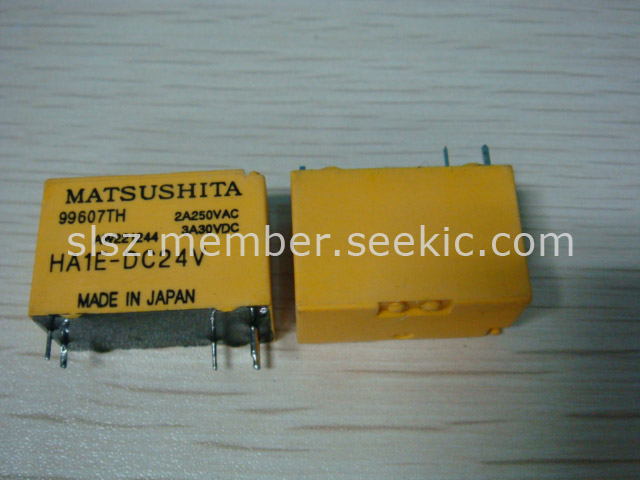

The HA1E-DC24V is a kind of cost saving subminiature PC board relay. It is amber sealed type. It is intended for office machines, electrical home appliances, load management equipment. It has compact construction and simple mechanism for stable quality. In addition, it is sensitive with very low operating power.
Parametrics
Specifications: (1)Nominal voltage: 24 V DC ; (2)Pick-up voltage (max.): 19.2 V DC; (3)Drop-out voltage (min.): 2.4 V DC; (4)Nominal operating current: 15 mA; (5)Nominal operating power: 360 mW; (6)Coil resistance, (±10%): 1600 Ω; (7)Maximum allowable voltage: 28.8 VDC.
Features
Features: (1)Compact construction; (2)Sensitive - very low operating power; (3)Soldering flux inflow prevented by molded construction; (4)Contact capacity - 3 A 250 V AC, 30 V DC; (5)Simple mechanism for stable quality - only 9 pieceparts; (6)Amber sealed types available.

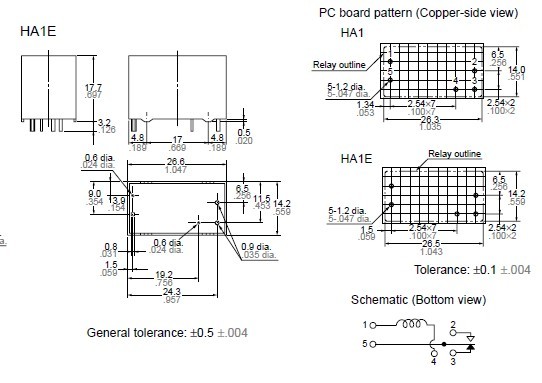

Diagrams
 |
