Product Summary

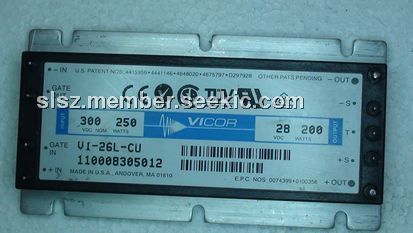

The VI-26L-CU is a DC-DC Converter. The VI-26L-CU operates at frequencies up to 2 MHz. The VI-26L-CU offers exceptional power density, efficiency, noise performance, reliability and ease of use. Power Boosters provide a simple, cost effective, off-the-shelf solution for higher power output requirements. One or more boosters may be used to create synchronous arrays capable of supplying several kilowatts of output power.
Parametrics
VI-26L-CU absolute maximum ratings: (1)Setpoint accuracy: 1%; (2)Load/line regulation: 0.5%; (3)Load/line regulation: 1%; (4)Output temperature drift: 0.02; (5)Long term drift: 0.02 ; (6)Output ripple - pp: 150 mV; (7)Trim range: 50%; (8)Total remote sense compensation: 0.5 0.5 Volts 0.25V max. neg. leg; (9)OVP set point: 125%; (10)Current limit: 105%; (11)Short circuit current: 20%.
Features
VI-26L-CU features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TüV, VDE, BABT, AUSTEL; (3)Up to 90% Efficiency; (4)Size: 116,8 x 61,0 x 12,7; (5)Remote Sense and Current Limit; (6)OVP, Thermal Shutdown; (7)Logic Disable; (8)Wide Range Output Adjust; (9)Compatible Power Booster Modules; (10)ZCS Power Architecture; (11)Low Noise FM Control; (12)CE Marked.

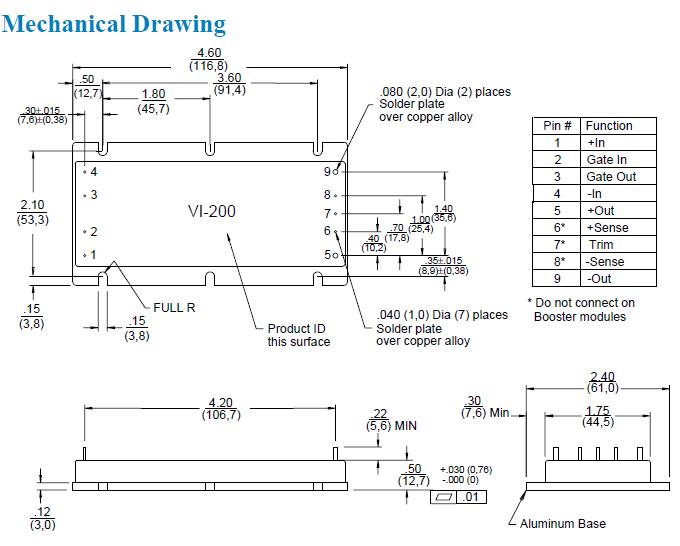

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() VI-26L-CU |
![]() |
![]() CONVERTER MOD DC/DC 28V 200W |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() VI-26L-CU-B1 |
![]() |
![]() CONVERTER MOD DC/DC 28V 200W |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() VI-26L-CU-F1 |
![]() |
![]() CONVERTER MOD DC/DC 28V 200W |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() VI-26L-CU-F2 |
![]() |
![]() CONVERTER MOD DC/DC 28V 200W |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() VI-26L-CU-F3 |
![]() |
![]() CONVERTER MOD DC/DC 28V 200W |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() VI-26L-CU-F4 |
![]() |
![]() CONVERTER MOD DC/DC 28V 200W |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() VI-26L-CU-S |
![]() |
![]() CONVERTER MOD DC/DC 28V 200W |
![]() Data Sheet |
![]()
|
|
