Product Summary

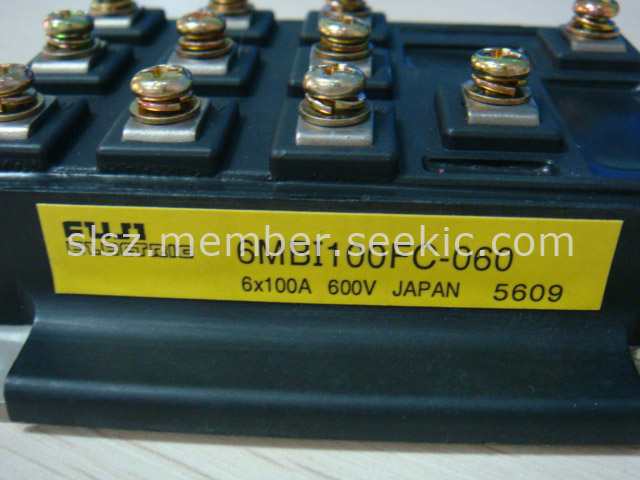

The 6MBI100FC-060 is a kind of IGBT module. It is intended for use in many applications: (1)inverter for motor drive; (2)AC.DC servo drive amplifier; (3)uniterruptible power supply; (4)industrial machines, such as welding machines. It features low saturation voltage and variety of power capacity series.

Parametrics

Absolute maximum ratings: (1)collector-emitter voltage, VCES: 600 V; (2)gate-emitter voltage, VGES: ±20 V; (3)collector current, continuous, IC: 100 A; (4)collector current, 1 ms, ICpulse: 200 A; (5)collector current, duty=83%, -IC: 100 A; (6)collector current, 1 ms, -ICpulse: 200 A; (7)power dissipation, PC: 360 W; (8)junction temperature, Tj: +150℃; (9)storage temperature, Tstg: -40 to +125℃.

Features

Features: (1)low saturation voltage; (2)variety of power capacity series; (3)voltage drive.

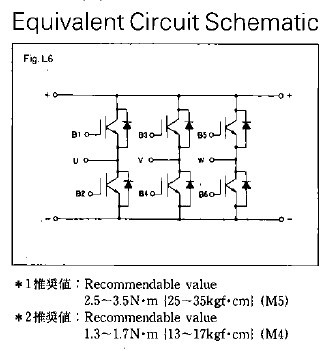

Diagrams
