Product Summary
The PCI9050-1 is a kind of PCI bus target interface chip for low cost adapters. It is intended to connect a wide variety of local bus designs to the PCI bus and allow relatively slow local bus designs to achieve 132 MB/sec burst transfers on the PCI bus. The device includes a bidirectional FIFO to speed match the 32-bit wide, 33 MHz PCI bus to a local bus. In addition, the device can be programmed to connect directly to the multiplexed or nonmultiplexed 8, 16, or 32 bit local bus.
Parametrics
Absolute maximum ratings: (1)storage temperature: -65 to +150℃; (2)ambient temperature with power applied: -55 to +125℃; (3)supply voltage to ground: -0.5 to +7.0 V; (4)input voltage (VIN): VSS-0.5 to VDD+0.5 V; (5)output voltage (VOUT): VSS-0.5 to VDD+0.5 V.
Features
Features: (1)PCI specification 2.1 compliant; (2)direct slave (Target) data transfer mode; (3)interrupt generator; (4)clock; (5)programmable local bus configurations; (6)bus drivers; (7)serial EEPROM interface; (8)four local chip selects; (9)five local address spaces; (10)big/little endian byte swapping; (11)read/write strobe delay and write cycle hold; (12)local bus wait states; (13)programmable prefetch counter.

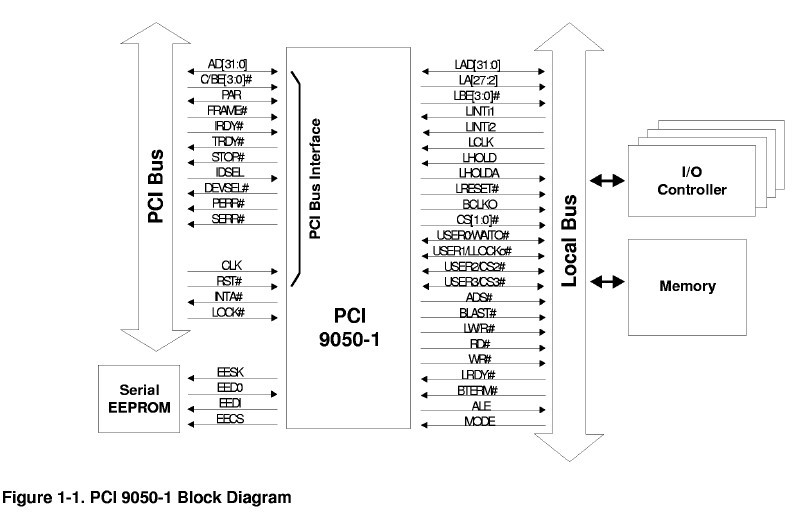

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

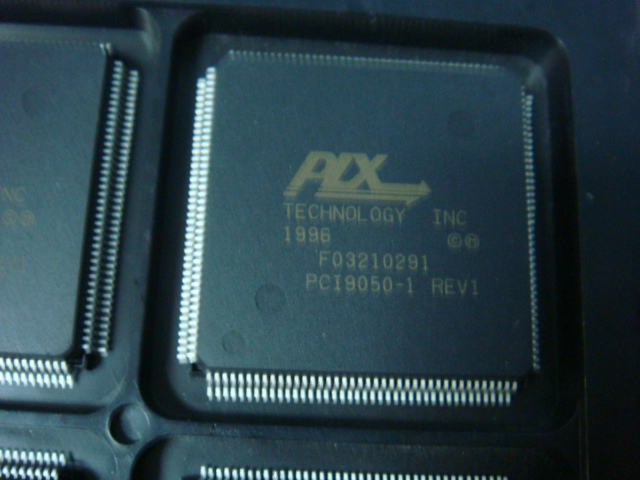

 PCI9050-1 |
PLX Technology |
Peripheral Drivers & Components (PCIs) USE PCI9052 FOR NEW DESIGNS |
Data Sheet |
Negotiable |
|
||||||||||
|
PCI9050-1 F |
PLX Technology |
Peripheral Drivers & Components (PCIs) 32Bit Target Chip |
Data Sheet |
|
|
||||||||||
