Product Summary

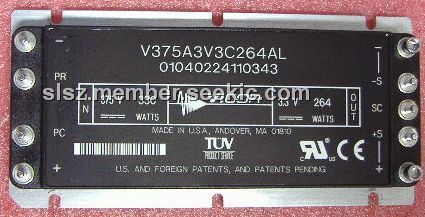

The V375A3V3C264AL is a DC-DC converter module, which uses 2nd Generation power processing, control and packaging technologies to provide the performance, flexibility and cost effectiveness expected of a mature power component.
Parametrics
V375A3V3C264AL absolute maximum ratings: (1)+In to –In voltage: -0.5 to +425 Vdc; (2)+In to –In voltage: 500 Vdc <100ms; (3)PC to –In voltage: -0.5 to +7.0 Vdc; (4)PR to –In voltage: -0.5 to +7.0 Vdc; (5)+Out to –Out voltage: -0.5 to +4.79 Vdc; (6)+Sense to –Out voltage: -0.5 to +4.79 Vdc; (7)–Sense to –Out voltage: 1.0 Vdc; (8)SC to –Out voltage: -0.5 to +1.5 Vdc; (9)Isolation voltage (in to out): 3000 Vrms; (10)Isolation voltage (in to base): 1550 Vrms; (11)Isolation voltage (out to base): 500 Vrms; (12)Storage temperature (C–Grade): -40 to +125 ℃; (13)Operating temperature (C–Grade): -20 to +100 ℃ Baseplate; (14)Pin soldering temperature: 500 (260) °F (℃) <5 sec;wave solder; (15)Pin soldering temperature: 750 (390) °F (℃) <7 sec; hand solder; (16)Mounting torque: 5 (0.57) in-lbs (N-m) 6 each, # 4-40 or M3.

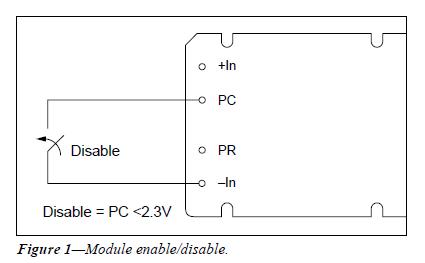

Features
V375A3V3C264AL features: (1)DC input range: 250 - 425V; (2)Input surge withstand: 500V for 100ms; (3)DC output: 3.3V; (4)Programmable output: 10 to 110%; (5)Regulation:±0.2%; (6)Efficiency: 81.5%; (7)Maximum operating temperature: 100℃ at full load; (8)Power density: 52W/cubic inch; (9)Height above board: 0.43 in. (10,9 mm); (10)Parallelable, with N+M fault tolerance; (11)Low noise ZCS/ZVS architecture.
