Product Summary

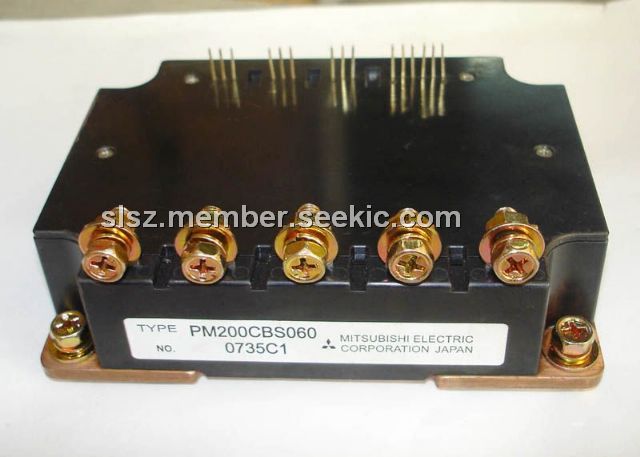

The PM200CBS060 is a intellighent power module. It is suitable for Servo drives and other motor controls.
Parametrics
PM200CBS060 absolute maximum ratings: (1)VCES, Collector-Emitter Voltage: 600V when VD = 15V, VCIN = 15V; (2)±IC, Collector Current: 200A when TC = 25℃; (3)±ICP, Collector Current (Peak): 400A when TC = 25℃; (4)PC, Collector Dissipation: 961W when TC = 25℃; (5)Tj, Junction Temperature: -20~+150℃.
Features
PM200CBS060 features: (1)Adopting 4th generation IGBT chip, which performance is improved by 1μm fine rule process; (2)Using new Diode which is designed to get soft reverse recovery characteristics; (3)Over-temperature protection by detecting Tj of the IGBT chips.

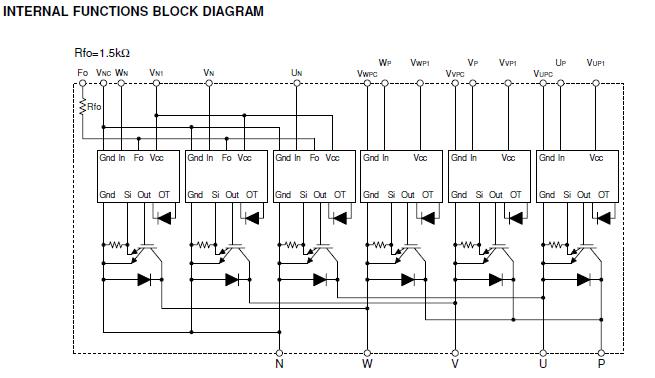

Diagrams
