Product Summary

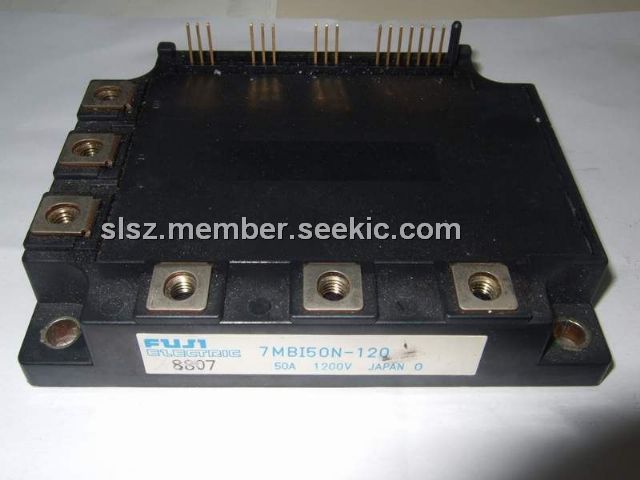

The 7MBI50N-120 is a IGBT module.
Parametrics
7MBI50N-120 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1200V; (2)Gate -Emitter Voltage, VGES: ± 20V; (3)Operating Junction Temperature, Tj: +150℃; (4)Storage Temperature, TStg: -40 ~ +125℃.
Features
7MBI50N-120 features: (1)Including Brake Chopper; (2)Square RBSOA; (3)Low Saturation Voltage; (4)Overcurrent Limiting Function.

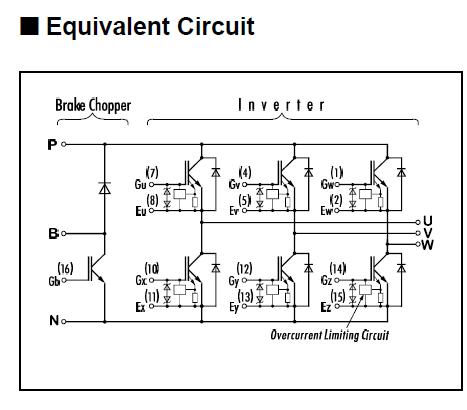

Diagrams
 |
