Product Summary

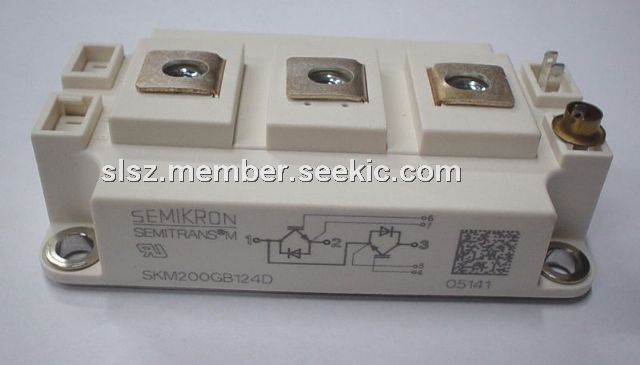

The SKM200GB124D is a Low Loss IGBT Module.
Parametrics
SKM200GB124D absolute maximum ratings: (1)VCES:1200V; (2)IC: TC=25℃:290A, TC=85℃:200A; (3)ICRM(tp=1ms):300A; (4)VGES:±20V; (5)Tvj:-40℃ to +150℃; (6)Tstg:-40℃ to +125℃; (7)Visol:2500V.
Features
SKM200GB124D features: (1)MOS input; (2)N channel, homogeneous silicon structure NPT-IGBT; (3)low saturation voltage; (4)low inductance case; (5)low tail current with low temperature dependence; (6)high short circuit capability, self limiting to 6* Icnom; (7)latch-up free; (8)isolated copper baseplate using DCB direct copper bonding technology without hard mould.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKM200GB124D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM200GB124DE |
Other |
|
Data Sheet |
Negotiable |
|
||||
