Product Summary
The QM150DY-2H is a transistor module. Its applciations include AC motor controllers, UPS, CVCF, DC motor controllers, NC equipment, Welders.
Parametrics
QM150DY-2H absolute maximum ratings: (1)VCEX (SUS), Collector-emitter voltage; 1000V when IC=1A, VEB=2V; (2)VCEX, Collector-emitter voltage: 1000V when VEB=2V; (3)VCBO, Collector-base voltage: 1000V when emitter open; (4)VEBO, Emitter-base voltage: 7V when collector open; (5)IC, Collector current: 150A when DC; (6)–IC, Collector reverse current: 150A when DC (forward diode current); (7)PC, Collector dissipation; 1000W when Tc=25℃; (8)IB, Base current: 8A when DC; (9)–ICSM, Surge collector reverse current (forward diode current): 1500A when Peak value of one cycle of 60Hz (half wave); (10)Tj, Junction temperature: -40~+150℃; (11)Tstg, Storage temperature: -40~+125℃; (12)Viso, Isolation voltage: 2500V when Charged part to case, AC for 1 minute; (13)Mounting torque, main terminals screw M6: 1.96~2.94N·m; 20~30kg·cm; mounting screw M6: 1.96~2.94N·m; 20~30kg·cm; (14)Weight, typical value: 470g.
Features
QM150DY-2H features: (1)IC Collector current: 150A; (2)VCEX Collector-emitter voltage: 1000V; (3)hFE DC current gain: 750; (4)Insulated Type; (5)UL Recognized.

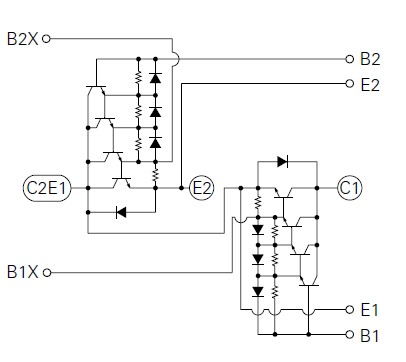

Diagrams
