Product Summary

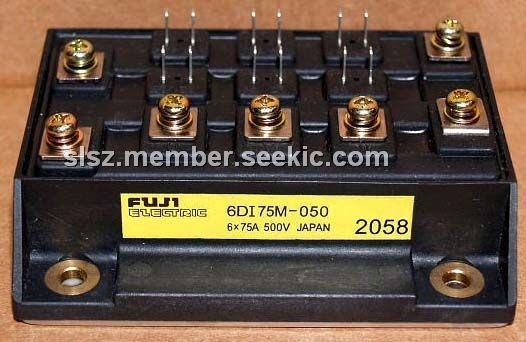

The 6DI75M-050 is a 600V power transistor module.

Parametrics

6DI75M-050 absolute maximum ratings: (1)VCBO:600V; (2)VCEO:600V; (3)VCEO(SUS):450V; (4)VEBO:10V; (5)IC:75A; (6)ICP:150A; (7)-IC:75A; (8)IB:4.5A; (9)IBP:9A; (10)TJ:+150℃; (11)Tstg:-40℃ to +125℃; (12)weight:630g; (13)Viso:2500V.

Features

6DI75M-050 features: (1)high DC current gain; (2)high speed switching.

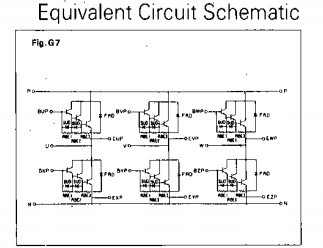

Diagrams
