Product Summary
The PGH5016AM is a thyristor module.
Parametrics
PGH5016AM absolute maximum ratings: (1)average rectified output current, IO(AV): 50A; (2)operating junction temperaure range, Tjw: -40 to +150℃; (3)storage temperature range, Tstg: -40 to +125℃; (4)isoration voltage, Viso: 2500V.
Features
PGH5016AM features: (1)Isolated Base; (2)3 Phase Converter with Rush-Current Controllable Thyristor; (3)High Surge Capability; (4)UL Recognized, File No. E187184.

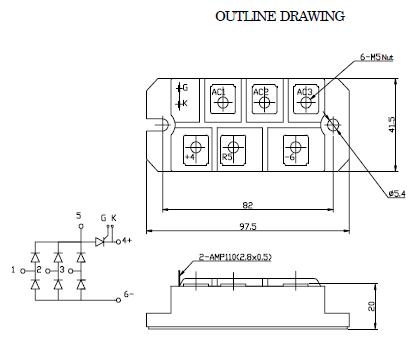

Diagrams
 |
