Product Summary
ICL8048CCJE belongs to the type of ICL8048. The following is some information of ICL8048. The ICL8048 is a kind of monolithic logarithmic amplifier capable of handling six decades of current input, or three decades of voltage input. It is intended to provide 1V of output for each decade change of input and fully temperature compensated. For increased flexibility, the scale factor, reference current and offset voltage are externally adjustable.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: ±18V; (2)IIN (Input Current): 2mA; (3)IREF (Reference Current): 2mA; (4)Voltage Between Offset Null and V+: ±0.5V; (5)Output Short Circuit Duration: Indefinite; (6)Maximum Junction Temperature (Hermetic Package or Die): 175oC; (7)Maximum Storage Temperature Range: -65 to 150℃; (8)Maximum Lead Temperature: (Soldering 10s)300℃.
Features
Features: (1)Full Scale Accuracy: 0.5%; (2)Temperature Compensated Operation: 0℃ to 70℃; (3)Scale Factor, Adjustable: 1V/Decade; (4)Dynamic Current Range: 120dB; (5)Dynamic Voltage Range: 60dB; (6)Dual JFET Input Op Amps.

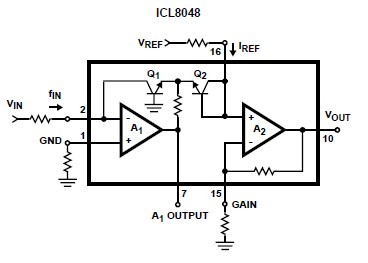

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

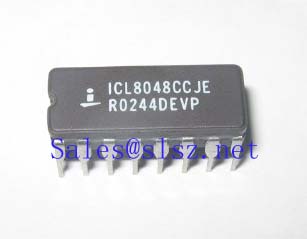

 ICL8048CCJE |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
