Product Summary

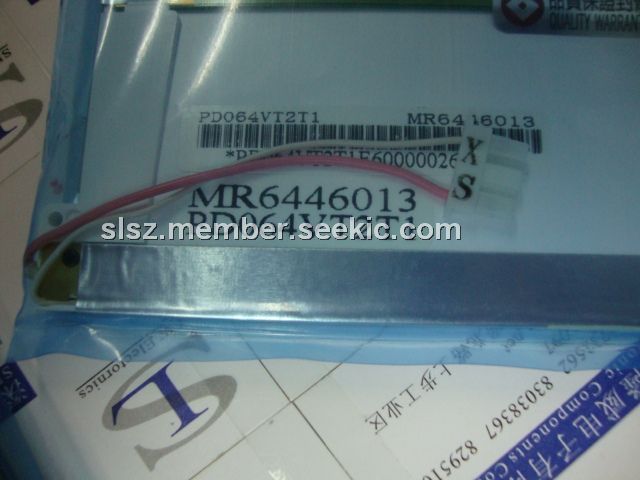

The PD064VT2T1 is a TFT-LCD Module with Pixel in stripe configuration and slim and compact. This product applies in computer peripheral, industrial meter, image communication, web-pad, e-boobs and multi-media.
Parametrics
Absolute maximum ratings: (1)+3.3V Supply Voltage, VCC: -0.3 to +4.0 V; (2)Input Signals Voltage, Vsig: -0.3 to VCC+0.3 V; (3)Storage Temperature, Tstg: -20 to +70 ℃; (4)Operating Temperature, Topa: -0 to +60 ℃.
Features
Features: (1)Pixel in stripe configuration; (2)Slim and compact; (3)Display Colors : 262,144 colors; (4)Viewing Direction : 6 o clock; (5)Slim module design for mobile electronics device application.

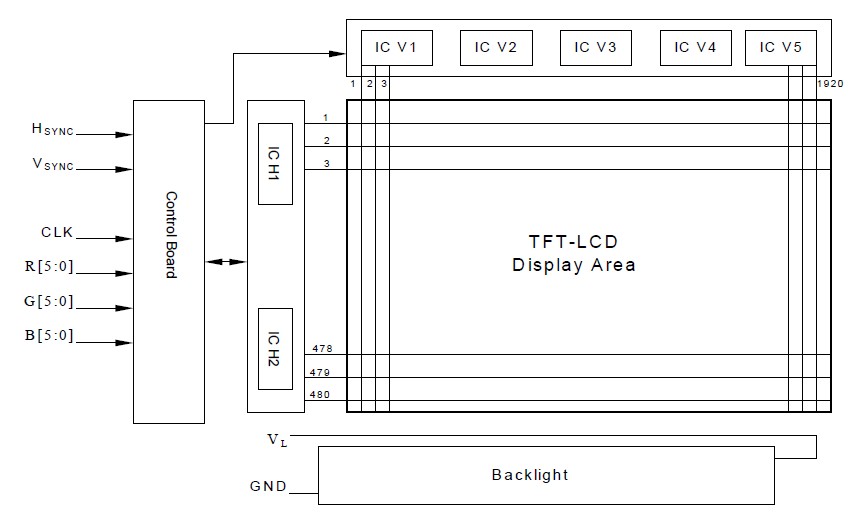

Diagrams
 |
