Product Summary

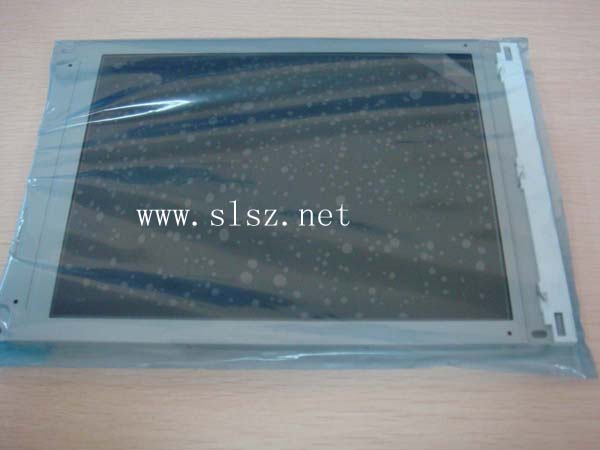

The LMG5278XUFC-00T is a kind of LCD panel. As this module is provided with c-mos lsi, the care to take such a precaution as to grounding the operators body is required when handling it. Power supply voltage is applied and reaches to specified voltage (5+/-0.25 V). It is an indispensable condition to drive lcds within the specified voltage limit since the higher voltage than the limit causes the shorter lcd life.

Parametrics

Absolute maximum ratings: (1)power supply for logic, VDD-VSS: 0 to 6.5 V; (2)power supply for lc drive, VDD-VEE: 0 to 27.5 V; (3)input voltage, Vi: -0.3 to VDD+0.3 V; (4)input current, Ii: 0 to 1 A.

Features

Features: (1)module size: 257.5(w)mm*174.0(h)mm*7.0(d)mm max.; (2)dot size: 0.27 (w)mm*0.27 (h)mm; (3)dot pitch: 0.30 (w)mm*0.30 (h)mm; (4)number of dots: 640 (w) * 480 (h)dots; (5)duty: 1/242 (display is divided into 2 blocks); (6)lcd: film type black/white (negative type); the upper polarizer is anti-glare type (hardness. :3h); the bottom polarizer is transmissive type; (7)viewing direction: 12 o clock; (8)back light: cold cathode fluorescent lamp.

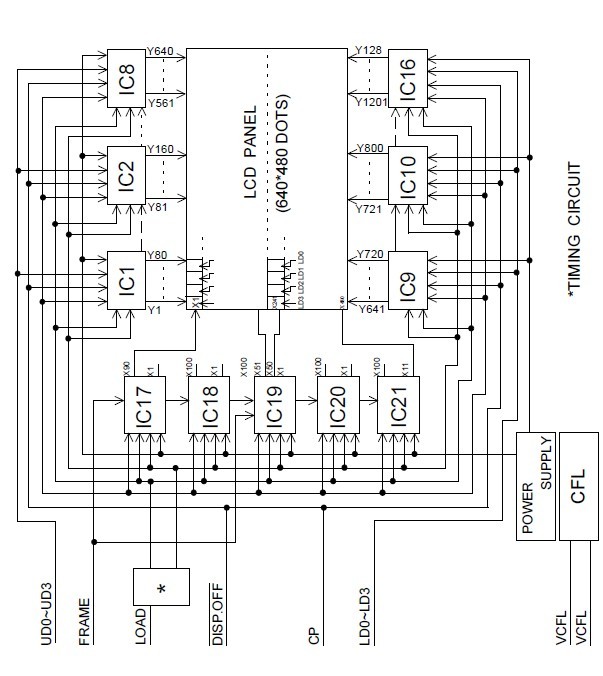

Diagrams
