Product Summary

The GBU6K is a kind of glass passivated single-phase bridge rectifier. It is generally used in ac-to-dc bridge full wave rectification for monitor, TV, printer, switching mode power supply, adapter, audio equipment, and home appliances applications. The mechnical data is: (1)Case: GBU, Epoxy meets UL 94V-0 flammability rating; (2)Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102, E3 suffix for consumer grade, meets JESD 201 class 1A whisker test; (3)Polarity: As marked on body; (4)Mounting Torque: 10 cm-kg (8.8 inches-lbs) max.; (5)Recommended Torque: 5.7 cm-kg (5 inches-lbs).

Parametrics

Absolute maximum ratings: (1)Maximum repetitive peak reverse voltage, VRRM: 800 V; (2)Maximum RMS voltage, VRMS: 560 V; (3)Maximum DC blocking voltage, VDC: 800 V; (4)Maximum average forward rectified output current, IF(AV): 6.0 A when TC=90℃ and 3.8 A when TA=40℃; (5)Peak forward surge current single sine-wave superimposed on rated load, IFSM: 175 A; (6)Rating for fusing (t < 8.3 ms), I2t: 127 A2s; (7)Operating junction and storage temperature range, TJ, TSTG: -55 to + 150℃.

Features

Features: (1)UL recognition file number E54214; (2)Ideal for printed circuit boards; (3)High surge current capability; (4)High case dielectric strength of 1500 VRMS; (5)Solder dip 260℃, 40 s; (6)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

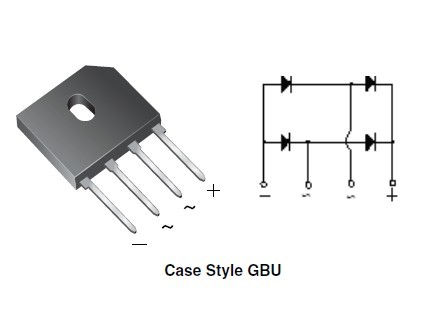

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
GBU6K
GBU6K

Fairchild Semiconductor

Bridge Rectifiers 6A Bridge Rectifier

Data Sheet

0-1: $0.61
1-25: $0.45
25-100: $0.37
100-250: $0.27
GBU6K_Q
GBU6K_Q

Fairchild Semiconductor

Bridge Rectifiers 6A Bridge Rectifier

Data Sheet

Negotiable
GBU6K-BP
GBU6K-BP

Micro Commercial Components (MCC)

Bridge Rectifiers 6A 800V

Data Sheet

0-1000: $0.45
1000-5000: $0.38
5000-10000: $0.32
GBU6K-E3/45
GBU6K-E3/45

Vishay Semiconductors

Bridge Rectifiers 800 Volt 6.0 Amp Glass Passivated

Data Sheet

0-1: $1.36
1-10: $1.24
10-25: $1.13
25-100: $1.01
GBU6K-E3/51
GBU6K-E3/51

Vishay Semiconductors

Bridge Rectifiers 800 Volt 6.0 Amp Glass Passivated

Data Sheet

0-1: $1.05
1-10: $0.92
10-100: $0.79
100-250: $0.70
