NL3224AC35-01

thin film transistor, liquid crystal display, –0.5 to 20.0 V, Wide temparature range, High luminance

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~20.00

PartNumber:: NL3224AC35-01

Brand:: NEC - Nec | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Huang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-07

From Other Seller

Part Number:NL3224AC35-01
US $10.00 - 20.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

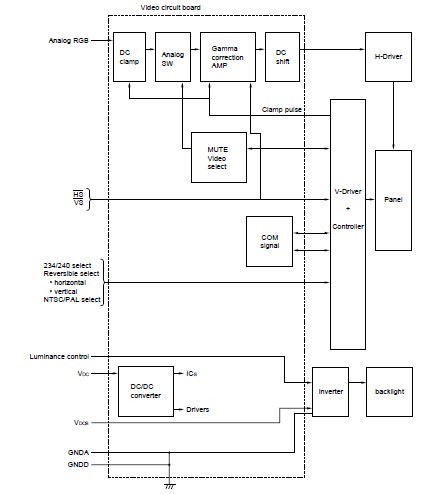

The NL3224AC35-01 is a TFT (thin film transistor) active matrix color liquid crystal display(LCD)comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. It has a built-in backlight. Its 14 cm diagonal display area contains 320 × 240 pixels and can display full-color simultaneously. The applications of the NL3224AC35-01 include: Car navigations, TV monitors, Video games, Monitors for process controller.

Parametrics

NL3224AC35-01 absolute maximum ratings: (1)Supply voltage VDC: –0.5 to 20.0 V; VDCB: –0.5 to 20.0 V; (2)Analog RGB input signal VIN1: –2.5 to 2.5 V ; (3)Logic input voltage VIN2: –0.5 to 5.5 V; (4)Storage temp. TST: –40 to 95 ℃; (5)Operating temp. TOP: –30 to 85 ℃; (6)Relative humidity (RH): ≤ 95 % (Ta ≤ 40℃); ≤ 85 % (40 < Ta ≤ 50℃0; (7)Absolute humidity: Absolute humidity shall not exceed Ta = 50℃, RH = 85% g/m3 (Ta > 50℃).

Features

NL3224AC35-01 features: (1)High luminance; (2)NTSC/PAL mode; (3)Reversible horizontal and vertical scanning; (4)234/240 line display; (5)Wide temparature range; (6)Analog RGB interface; (7)Incorporated edge type backlight.
