Product Summary

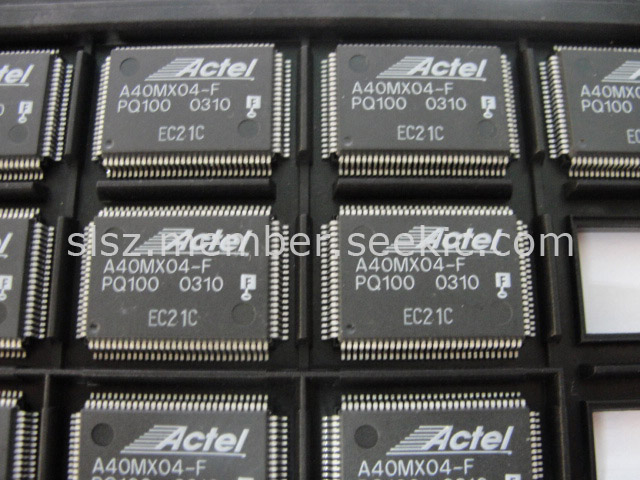

The A40MX04-FPQ100 is a member of 40MX families which offer a cost-effective design solution at 5V. It is a single-chip solution and provides high performance while shortening the system design and development cycle. The device can integrate and consolidate logic implemented in multiple PALs, CPLDs, and FPGAs. It is composed of fine-grained building blocks that enable fast, efficient logic designs. The device architecture is based on Actel’s patented antifuse technology implemented in a 0.45μm triplemetal CMOS process.
Parametrics
Features: (1)Single-Chip ASIC Alternative; (2)3,000 to 54,000 System Gates; (3)Up to 2.5 kbits Configurable Dual-Port SRAM; (4)Fast Wide-Decode Circuitry; (5)Up to 202 User-Programmable I/O Pins; (6)5.6 ns Clock-to-Out; (7)250 MHz Performance; (8)5 ns Dual-Port SRAM Access; (9)100 MHz FIFOs; (10)7.5 ns 35-Bit Address Decode; (11)Mixed-Voltage Operation (5.0V or 3.3V for core and I/Os), with PCI-Compliant I/Os; (12)Up to 100% Resource Utilization and 100% Pin Locking; (13)Deterministic, User-Controllable Timing; (14)Unique In-System Diagnostic and Verification Capability with Silicon Explorer II; (15)Low Power Consumption; (16)IEEE Standard 1149.1 (JTAG) Boundary Scan Testing.
Features
Absolute maximum ratings at 5.0V operating conditions: (1)VCC, DC Supply Voltage: –0.5 to +7.0 V; (2)VI, Input Voltage: –0.5 to VCC+0.5 V; (3)VO, Output Voltage: –0.5 to VCC+0.5 V; (4)tSTG, Storage Temperature: –65 to +150℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 A40MX04-FPQG100 |
|
IC FPGA MX SGL CHIP 6K 100-PQFP |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
A40MX02-1PQ100I |
|
IC FPGA MX SGL CHIP 3K 100-PQFP |
Data Sheet |
|
|
||||||
|
A40MX02-1PQ100M |
|
IC FPGA MX SGL CHIP 3K 100-PQFP |
Data Sheet |
|
|
||||||
|
A40MX02-1PQG100 |
|
IC FPGA MX SGL CHIP 3K 100-PQFP |
Data Sheet |
|
|
||||||
|
A40MX02-1PQG100I |
|
IC FPGA MX SGL CHIP 3K 100-PQFP |
Data Sheet |
|
|
||||||
|
A40MX02-1PQG100M |
|
IC FPGA MX SGL CHIP 3K 100-PQFP |
Data Sheet |
|
|
||||||
|
A40MX04-FPLG68 |
|
IC FPGA MX SGL CHIP 6K 68-PLCC |
Data Sheet |
|
|
||||||
