Product Summary

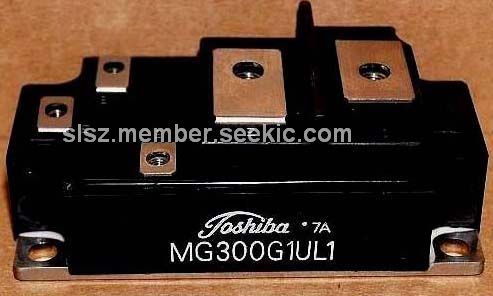

The MG300G1UL1 is a N channel IGBT. The applications of it include high power switching and motor control.
Parametrics
MG300G1UL1 absolute maximum ratings: (1)collector-base voltage:600V; (2)collector-emitter sustaining voltage:VCEX(SUS):600V, VCEO(SUS):450V; (3)emitter-base voltage:6V; (4)collector current: IC:300A, ICP:600A; (5)forward current: IF:300A, IFM:600A; (6)base current:40A; (7)collector power dissipation:1400W; (8)junction temperature:150℃; (9)storage temperature range:-40℃ to +125℃; (10)isolation voltage:2500V.
Features
MG300G1UL1 features: (1)the collector is isolated from case; (2)with builit-in free wheeling diode; (3)high DC current gain:hFE=100(min.)(IC=300A); (4)low saturation voltage:VCE(sat)=2V(max.)(IC=300A).
