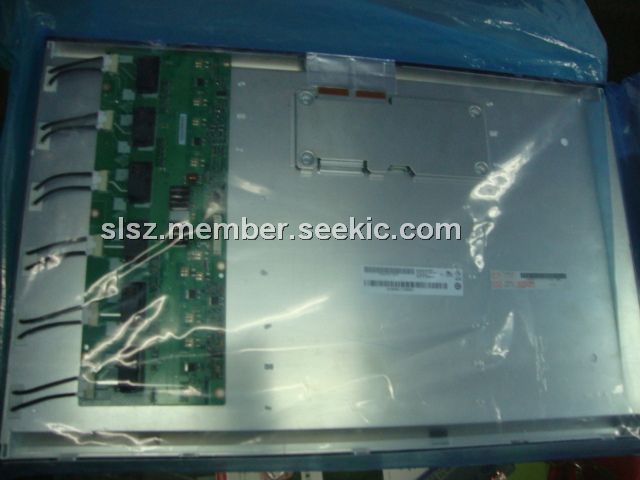

Product Summary
The M240UW04 is a 24 inch-wide Color a-Si TFT-LCD Module. It supports the WUXGA (1920(H) × 1200(V)) screen format and 16.7M colors(RGB 6-bits + Hi-FRC data). All input signals are 2 channel LVDS interface compatible. The M240UW04 does not contain an inverter board for backlight.
Parametrics
M240UW04 absolute maximum ratings: (1)Logic/LCD Drive Voltage VDD: min=4.5[Volt], max=5.5[Volt]; (2)CCFL Current ICFL: min=2.0[mA] rms, max=8.0[mA] rms; (3)Operating Temperature TOP: min=0[℃], max=+50[℃]; (4)Operation Humidity HOP: min=5[%RH], max=90[%RH]; (5)Storage Temperature TST: min=-20[℃], max=+60[℃]; (6)Storage Humidity HST: min=5[%RH], max=90[%RH].
Features
M240UW04 characteristics: (1)VDD Logic/LCD Drive Voltage: min=4.5[Volt], typ=5.0[Volt], max=5.5[Volt]; (2)On the conditions of VDD=5V, All Black Pattern, at frame rate 60Hz, SPD off IDD VDD current: typ=-1.2[A], max=1.5[A]; On the conditions of VDD=5V , All Black Pattern, at frame rate 60Hz, SPD on, IDD VDD current: typ=- 1.6[A], max=2.0[A]; (3)Irush LCD Inrush Current: max=3[A]; (4)On the conditions of VDD=5V , All Black Pattern, at 60Hz, SPD off, ±20%, PDD VDD Power: min=-6[Watt], max=7.2[Watt]; On the conditions of VDD=5V , All Black Pattern, at 60Hz, SPD on, ±20%, PDD VDD Power: min=-8[Watt], max=9.6[Watt].

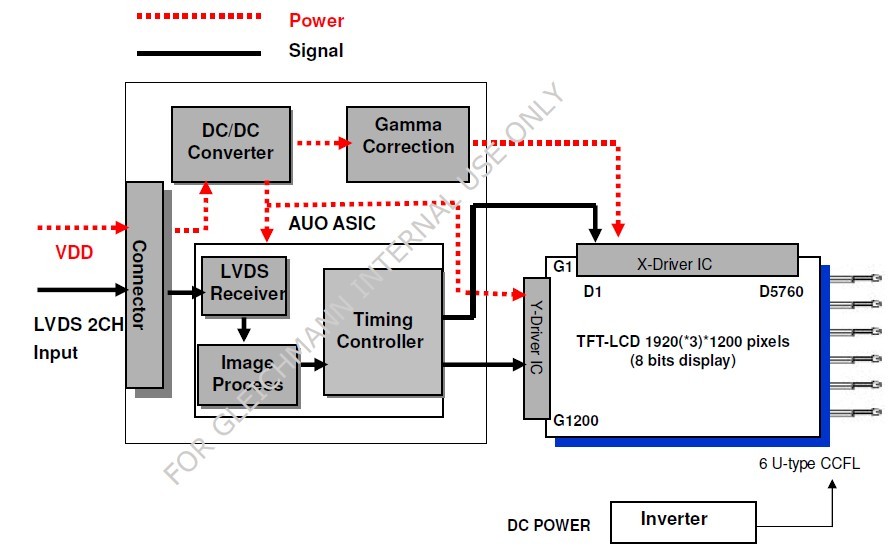

Diagrams
 |
