Product Summary

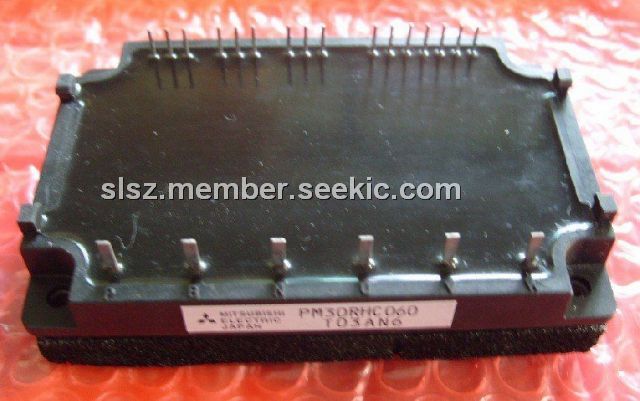

The PM30RHC060 is a 30A IGBT module. The PM30RHC060 is designed for appliations requiring a high frequency output switching inverter.
Parametrics
PM30RHC060 absolute maximum ratings: (1)power device junction temperature:-20℃ to +150℃; (2)storage temperature:-40℃ to +125℃; (3)case operating temperature:-20℃ to +100℃; (4)mounting torque, M4 mounting screws:12kg-cm; (5)module weight:140Grams; (6)supply voltage protected by OC and SC:400V; (7)isolation voltage AC 1miunte, 60Hz:2500V.
Features
PM30RHC060 features: (1)complete output power circuit ; (2)gate drive circuit; (3)protection logic:short circuit, over-current, over temperature, under voltage.

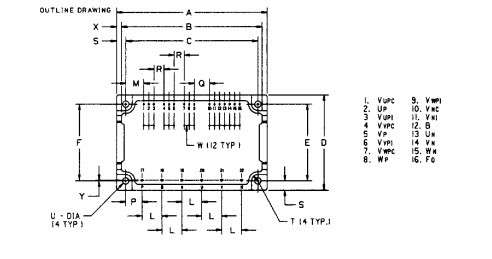

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
PM30RHC060 |
Other |
Data Sheet |
Negotiable |
|
||||||||
