Product Summary

The FP50R12KE3 is an IGBT Module.

Parametrics

FP50R12KE3 absolute maximum raings: (1)repetitive peak reverse voltage: 1600 V; (2)maximum RMS current at Rectifier output: t.b.d. A; (3)DC forward current: 50 A; (4)surge forward current: 500 A; (5)I2t value: 1250 A2s.

Features

FP50R12KE3 features: (1)forward voltage: 1,05 V; (2)threshold voltage: 0,8 V; (3)slope resistance: 6,5 mΩ; (4)reverse current: 3mA; (5)lead resistance, terminals-chip: 4mΩ.

Diagrams

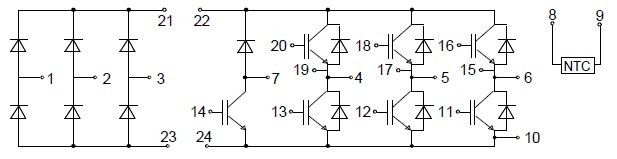

FP50R12KE3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

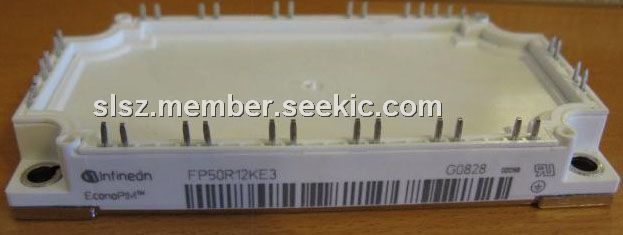

FP50R12KE3
FP50R12KE3
Infineon Technologies
IGBT Modules 1200V 50A PIM
Data Sheet
0-1: $87.08
1-5: $82.73
5-10: $78.38
