Product Summary
The IXFN48N50 is a Power MOSFET. The applications of IXFN48N50 are DC-DC converters, Synchronous rectification, Battery chargers and so on.
Parametrics
IXFN48N50 absolute maximum ratings: (1)VDSS(TJ= 25℃ to 150℃): 500V ; (2)VDGR(TJ= 25℃ to 150℃; RGS = 1 MΩ): 500V ; (3)VGS:Continuous:±20V; (4)VGSM:Transient:±30V; (5)ID25:TC = 25℃:48A; (6)IDM:192A; (7)IAR:TC = 25℃:24A; (8)EAR:TC = 25℃:30A; (9)PD:TC = 25℃:520W.
Features
IXFN48N50 features: (1)International standard packages; (2)Molding epoxies meet UL 94 V-0 flammability classification; (3)SOT-227B miniBLOC with aluminium nitride isolation; (4)Low RDS (on) HDMOSTM process; (5)Unclamped Inductive Switching (UIS) rated; (6)Fast intrinsic rectifier.

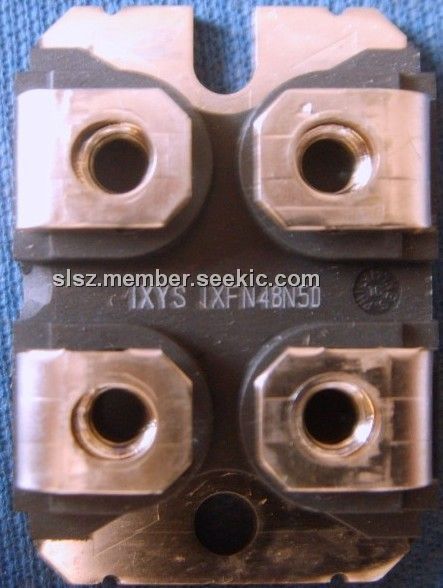

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IXFN48N50 |
Ixys |
MOSFET 500V 48A |
Data Sheet |
Negotiable |
|
||||
 |
IXFN48N50Q |
Ixys |
MOSFET 48 Amps 500V 0.1 Rds |
Data Sheet |
Negotiable |
|
||||
|
IXFN48N50U2 |
Ixys |
MOSFET 48 Amps 500V 0.1 Rds |
Data Sheet |
Negotiable |
|
||||
|
IXFN48N50U3 |
Ixys |
MOSFET 48 Amps 500V 100 Rds |
Data Sheet |
Negotiable |
|
||||
