Product Summary

The ETK85-050 is a power transistor module. The applciations of the device include power switching, AC motor controls, DC motor controls and uninterruptible power supply.

Parametrics

ETK85-050 aboslute maximum ratings: (1)VCBO: 600V; (2)VCEO: 450V; (3)VEO: 6V; (4)IC: 75A; (5)ICP: 150A; (6)-IC: 75A; (7)IB: 4.5A; (8)IBP: 9A; (9)PC: 350W; (10)Tj: 150℃; (11)Tstg: -40 to 125℃; (12)m: 100g; (13)Viso: 2000V; (14)mounting: 3.5Nm; (15)terminals: 1.7Nm.

Features

ETK85-050 features: (1)including free wheeling diode; (2)high DC current gain; (3)insulated type.

Diagrams

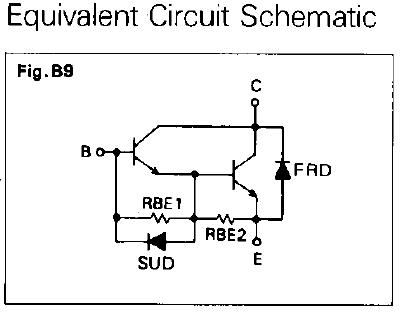

ETK85-050 equivalent circuit schematic
