Product Summary
The CM600HA-24H is a Module. It is designed for use in switching applications. The CM600HA-24H consists of one IGBT Transistor in a single configuration with a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
Parametrics
CM600HA-24H absolute maximum ratings: (1)Junction Temperature, Tj: –40 to 150℃; (2)Storage Temperature, Tstg: –40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1200 Volts; (4)Gate-Emitter Voltage, VGES: ±20 Volts; (5)Collector Current, IC: 600 Amperes; (6)Peak Collector Current, ICM: 1200Amperes; (7)Diode Forward Current, IF: 600 Amperes; (8)Diode Forward Surge Current, IFM: 1200Amperes; (9)Power Dissipation, Pd: 4100 Watts; (10)Max. Mounting Torque M8 Terminal Screws: 95 in-lb; (11)Max. Mounting Torque M6 Mounting Screws: 26 in-lb; (12)Module Weight (Typical): 560 Grams; (13)V Isolation, VRMS: 2500 Volts.
Features
CM600HA-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery (135ns) Free-Wheel Diode; (4)High Frequency Operation (20-25kHz); (5)Isolated Baseplate for Easy Heat Sinking.

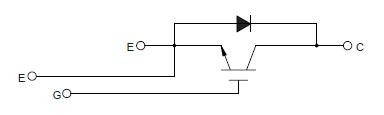

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CM600HA-24H |
IGBT MOD SGL 1200V 600A H SER |
Data Sheet |
Negotiable |
|
||||||||||||||||||
