Product Summary
The AD6623ASZ is a kind of 4-channel Transmit Signal Processor (TSP). It creates high bandwidth data for Transmit Digital-to-Analog Converters (TxDACs) from baseband data provided by a Digital Signal Processor (DSP). The device synthesizes multicarrier and multistandard digital signals to drive these TxDACs. The device has four identical digital TSPs complete with synchronization circuitry and cascadable wideband channel summation. It is designed for Cellular/PCS Base Stations, Micro/Pico Cell Base Stations, Wireless Local Loop Base Stations, Multicarrier, Multimode Digital Transmit, Phased Array Beam Forming Antennas and Software Defined Radio.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: 3.6 V; (2)Input Voltage: –0.3 V to +5 V (5 V Tolerant); (3)Output Voltage Swing: –0.3 V to VDDIO + 0.3 V; (4)Load Capacitance: 200 pF; (5)Junction Temperature Under Bias: 125℃; (6)Storage Temperature Range: –65℃ to +150℃; (7)Lead Temperature (5 sec): 280℃.
Features
Features: (1)Pin Compatible to the AD6622; (2)18-Bit Parallel Digital IF Output; (3)18-Bit Bidirectional Parallel Digital IF Input/Output; (4)Four Independent Digital Transmitters in Single Package; (5)RAM Coefficient Filter (RCF); (6)High Speed CIC Interpolating Filter; (7)Digital Resampling for Noninteger Interpolation Rates; (8)NCO Frequency Translation; (9)Separate 3-Wire Serial Data Input for Each Channel; (10)Microprocessor Control; (11)2.5 V CMOS Core, 3.3 V Outputs, 5 V Inputs; (12)JTAG Boundary Scan.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

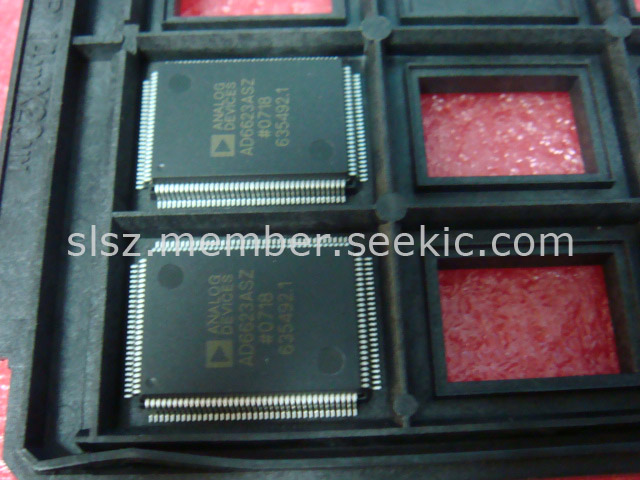

AD6623ASZ |
IC TSP 4CHAN 104MSPS 128MQFP |
Data Sheet |
|
|
||||||||
