Product Summary

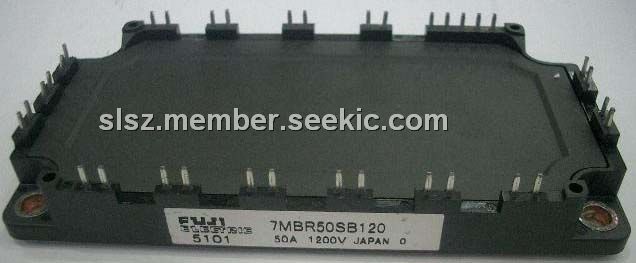

The 7MBR50SB120 is an IGBT module. The applications of the device include Inverter for motor drive, AC and DC servo drive amplifier and Uninterruptible power supply.
Parametrics
7MBR50SB120 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 1200V; (2)Gate-Emitter voltage, VGES: ±20V; (3)Collector current, IC: 75A; (4)Collector power dissipation, PC: 360W; (5)Collector-Emitter voltage, VCES: 1200V; (6)Gate-Emitter voltage, BGES: ±20V; (7)Collector current, IC: 35A; (8)Collector power dissipation, PC: 180W; (9)Repetitive peak reverse voltage, VRRM: 1200V; (10)Repetitive peak reverse voltage, VRRM: 1600V; (11)Average output current,IO: 50A; (12)Surge current (Non-Repetitive), IFSM: 520A; (13)I2t (Non-Repetitive), I2t: 1352A2s; (14)Operating junction temperature, Tj: 150℃; (15)Storage temperature, Tstg: -40 to 125℃; (16)Isolation between terminal and copper base, Viso: AC2500V; (17)Mounting screw torque: 3.5Nm.
Features
7MBR50SB120 features: (1)Low VCE(sat); (2)Compact package; (3)P.C. board mount; (4)Converter diode bridge, Dynamic brake circuit.

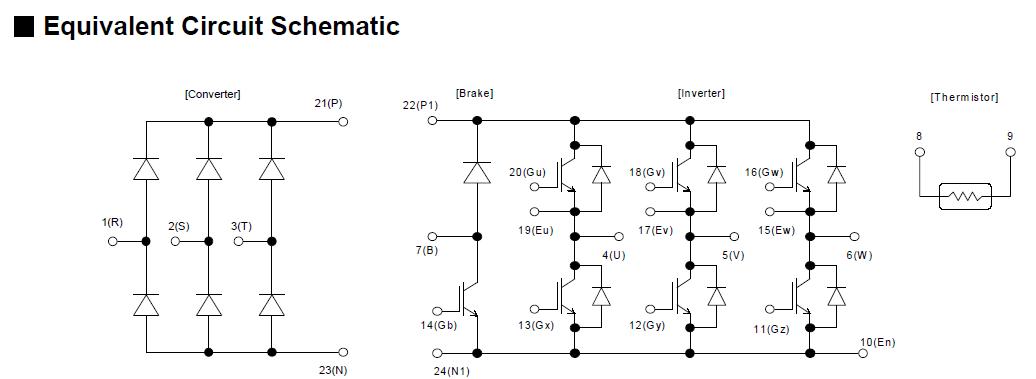

Diagrams
