Product Summary

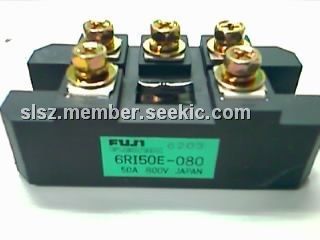

The 6RI50E-080 is a power diode module. It is designed for inverter for AC motors, power supply units for DC motors, DC power supply units for battery chargers, general purpose DC power supply units.

Parametrics

6RI50E-080 absolute maximum ratings: (1)repetitive peak reverse voltage: 800 V; (2)non-repetitive peak reverse voltage: 880 V; (3)average output current: 50 A; (4)surge current: 480 A; (5)I2t: 920 A2s; (6)junction temperature: -40 to +150 ℃; (7)storage temperature: -40 to +125 ℃; (8)vibration resistance: 5 G.

Features

6RI50E-080 features: (1)All the terminals and the mounting plate are electrically isolated. These modules can be installed in the same cooling fin as other modules, thus saving installation space-a cost-effective feature; (2)The diode chips are coated with a glass of zinc oxide, making them highly resistant to temperature and humidity variation; (3)6 diode chips are connected to the 3-phase bridge rectifing circuit inside the module-a cost-effective feature.

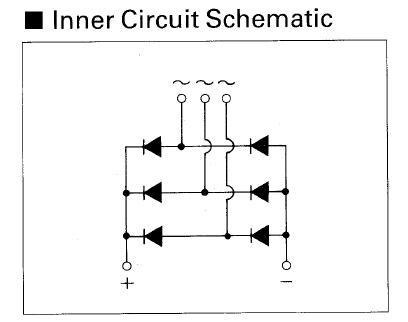

Diagrams
