Product Summary

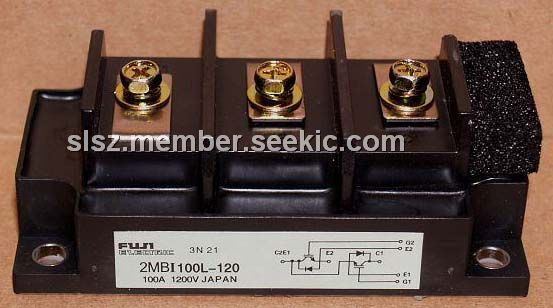

The 2MBI100L-120 is a IGBT module. Its applications include inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines.
Parametrics
2MBI100L-120 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)gate-emitter voltage, VGES: ±20V; (3)max power dissipation, Pc: 800W; (4)operating temperature, Tj: +150℃; (5)storage temperature, Tstg: -40 to +125℃.
Features
2MBI100L-120 features: (1)high speed switching; (2)low saturation voltage; (3)voltage drive.

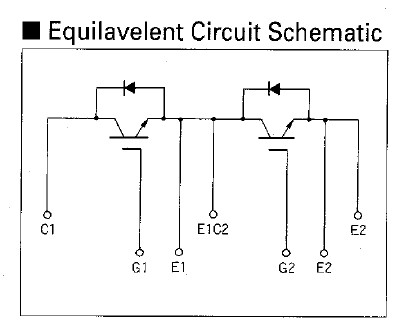

Diagrams
 |
