Product Summary

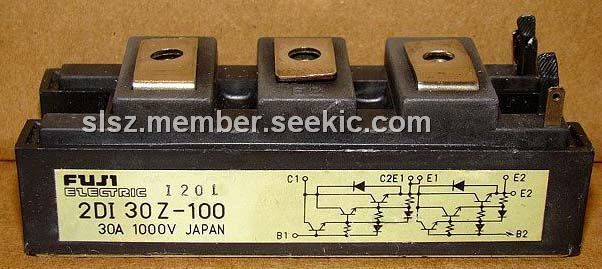

The 2DI30Z-100 is a power transistor module. Its applications include power switching, AC motor controls, DC motor controls and uninterruptible power supply.

Parametrics

2DI30Z-100 absolute maximum ratings: (1)VCBO: 1000V; (2)VCEO: 1000V; (3)VEBO:10V; (4)IC: 30A; (5)ICP: 60A; (6)-IC: 30A; (7)IB: 2A; (8)IBP: 4A; (9)PC: 300W; (10)PC: 600W; (11)Tj: +150℃; (12)m: 175g; (13)Viso: 2500A; (14)mounting: 35Nm; (15)Terminals: 35Nm; (16)Tstg: -40~+125℃.

Features

2DI30Z-100 features: (1)high voltage; (2)including free wheeling diode; (3)excellent safe operating area; (4)insulated type.
