Product Summary

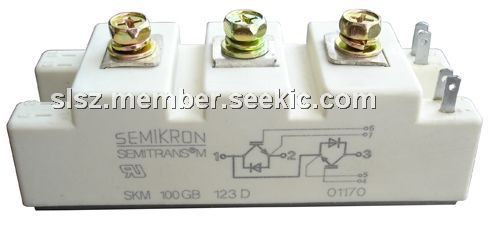

The SKM100GB123D is an IGBT module. The device is suitable for AC inverter drives and UPS.
Parametrics
SKM100GB123D absolute maximum ratings: (1)IGBT, VCES: 1200V when Tj=25℃; IC: 100A when Tj=150℃, Tcase=25℃; 90A when Tj=150℃, Tcase=80℃; ICRM: 150A when ICRM=2xIcnom; VGES: ±20V; tps: 10μs when VCC=600V, VGE≤20V; Tj=125℃, VCES<1200V; (2)inverse diode, IF: 95A when Tj=150℃, Tcase=25℃; 90A when Tj=150℃, Tcase=80℃; IFRM: 150A when IFRM=21xIFnom; IFSM: 720A when tp=10ns, sin, Tj=150℃; (3)freewheeling diode, IF: 130A when Tj=150℃, Tcase=25℃; 90A when Tj=150℃, Tcase=80℃; IFRM: 200A when IFRM=2xIFnom; IFSM: 900A when tp=10ms, sin, Tj=150℃; (4)module, It(RMS): 200A; (5)Tvj: -40 to 150℃; (6)Tstg: -40 to 125℃; (7)Visol: 2500V when AC 1min.
Features
SKM100GB123D features: (1)MOS input (voltage controlled); (2)N channel, homogeneous Si; (3)low inductance case; (4)very low tail current with low temperature dependence; (5)high short circuit capability, self limiting to 6Icnom; (6)latch-up free; (7)fast and soft inverse CAL diodes; (8)isolated copper baseplate using DCB direct copper bonding technology; (9)large celearance (10mm) and creepage distances (20mm).
Diagrams
