Product Summary

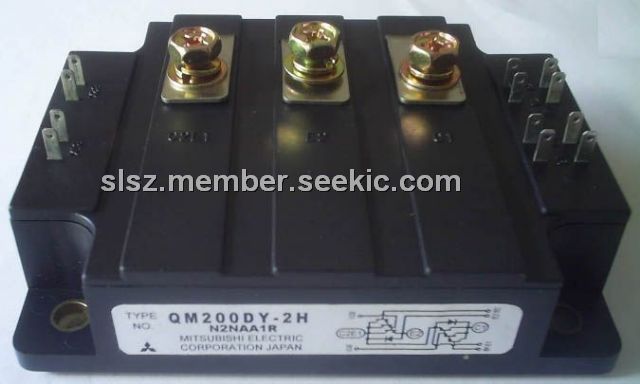

The QM200DY-2H is a MITSUBISHI transistor module. The applications of the QM200DY-2H include Inverters, Servo drivers, DC motor controllers, NC equipment, Welders.

Parametrics

QM200DY-2H absolute maximum ratings: (1)Collector-emitter voltage: 1000 V; (2)Collector-emitter voltage: 1000 V; (3)Collector-base voltage: 1000 V; (4)Emitter-base voltage: 7 V; (5)Collector current: 200 A; (6)Collector reverse current: 200 A; (7)Collector dissipation: 1560 W; (8)Base current: 10 A; (9)Surge collector reverse current (forward diode current): 2000 A; (10)Junction temperature: -40 to +150 ℃; (11)Storage temperature: -40 to +125 ℃.

Features

QM200DY-2H features: (1)IC Collector current: 200A; (2)VCEX Collector-emitter voltage: 1000V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL Recognized: Yellow Card No. E80276 (N), File No. E80271.

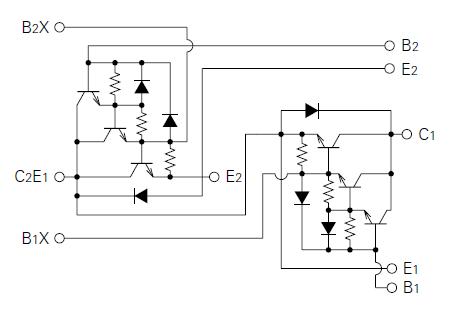

Diagrams
