Product Summary

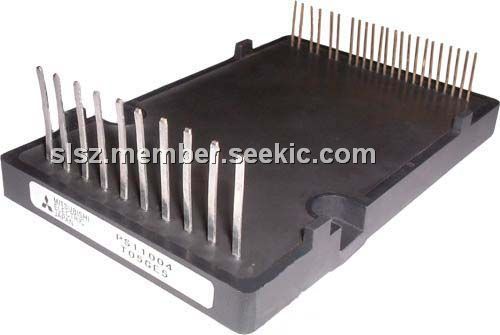

The PS11004 is a 100V IPM module.

Parametrics

PS11004 general specifications: (1)Maximum Clock Frequency:400 KHz; (2)Operating Supply Voltage:8.50V; (3)Maximum Supply Current:0.12 mA; (4)Maximum Power Dissipation:400 mW; (5)Maximum Operating Temperature:+ 180℃; (6)Minimum Operating Temperature:- 80℃.

Features

PS11004 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function.
