Product Summary
The M190EG01 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit, and backlight system. The screen format is intended to support the SXGA (1280(H) × 1024(V)) screen and 16.7M colors 8-bits. All input signals are LVDS interface compatible. Inverter card of backlight is not included. The M190EG01 is designed for a general display unit.
Parametrics
M190EG01 absolute maximum ratings: (1)Logic/LCD Drive Voltage VDD: min=-0.3[Volt], max=+6[Volt]; (2)CCFL Current ICFL: max=8[mA] rms; (3)Operating Temperature TOP: min=0, max=+50[oC]; (4)Operation Humidity HOP: min=5[%RH], max=90[%RH]; (5)Storage Temperature TST: min=-20[oC], max=+60[oC]; (6)Storage Humidity HST: min=5[%RH], max=90[%RH].
Features
M190EG01 characteristics: (1)Optical ResponseTime [msec]: 8ms GTG (Avg. Typ.); 20 ms(Typ, on/off); (2)Nominal Input Voltage VDD [Volt]: +5.0 V; (3)Power Consumption [Watt]: 28 W (Typ)(w/o Inverter, All white pattern); (4)Weight [Grams]: 2500 (Typ); 2700 (Ma×); (5)Physical Size (H × V × D) [mm]: 396 (H) × 324 (V) × 17.5 (D)(Typ); (6)Electrical Interface: Dual channel LVDS; (7)Surface Treatment: Hard-coating (3H), Non-Glare treatment; (8)Support Color: 16.7M colors 8-bits.

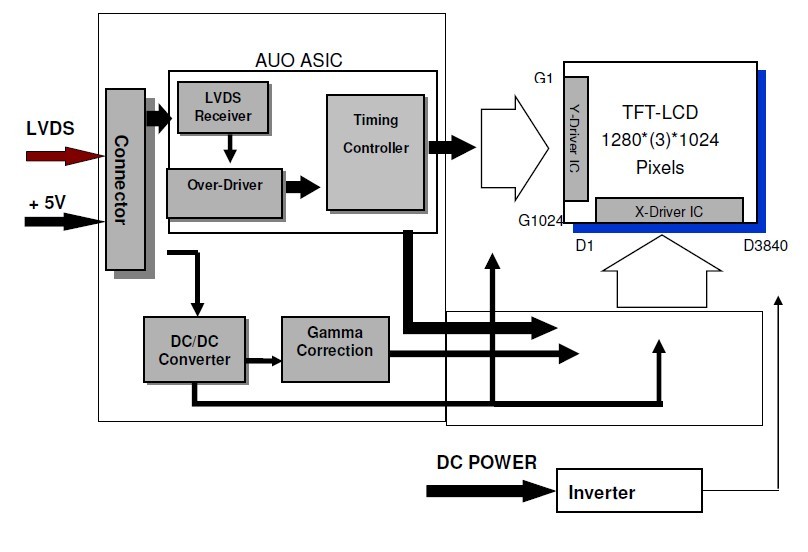

Diagrams
 |
