Product Summary
The LM8V302R is a color STN-LCD module.
Parametrics
LM8V302R specifications: (1)Display size: 20 [7.7] cm; (2)Brightness type: 1CCFT(E); (3)Dot format (H × V): 640 × RGB × 480 dot; (4)Duty ratio: 1/240; (5)Dot pitch (H × V): 0.082 × 0.246 mm; (6)Logic voltage: 3.3 V; (7)Active area (H × V): 157.4 × 118.0 mm; (8)Power consumption: 2290 mW; (9)Panel type *1; (10)Outline dimensions (W × H × D): 197.0 × 142.5 × 8 mm; (11)Panel mode: Transmissive; (12)Weight: 240 g; (13)Contrast ratio: 50 : 1; (14)Operating temperature: 0 to +50 ℃; (15)Response time: 350 ms; (16)Storage temperature: -25 to +60 ℃; (17)Brightness: 120 cd/m2.
Features
LM8V302R features: (1)20 cm [7.7] VGA format; (2)Thin structure (8.0 mm) & lightweight (240 g); (3)Built-in CCFT backlight.

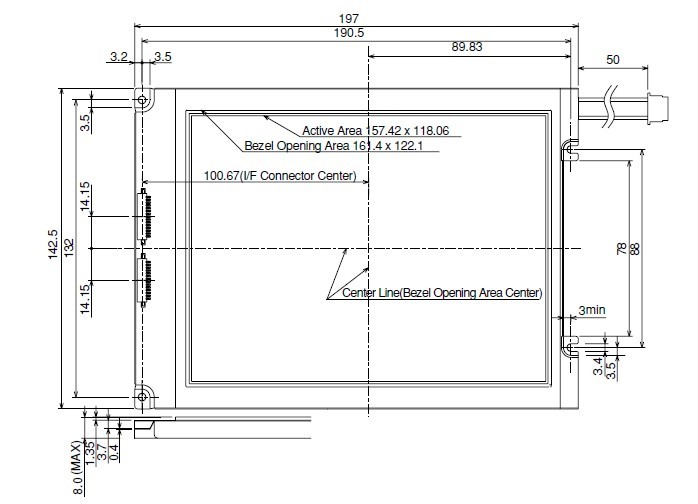

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM8V302R |
Other |
|
Data Sheet |
Negotiable |
|
||||
