Product Summary

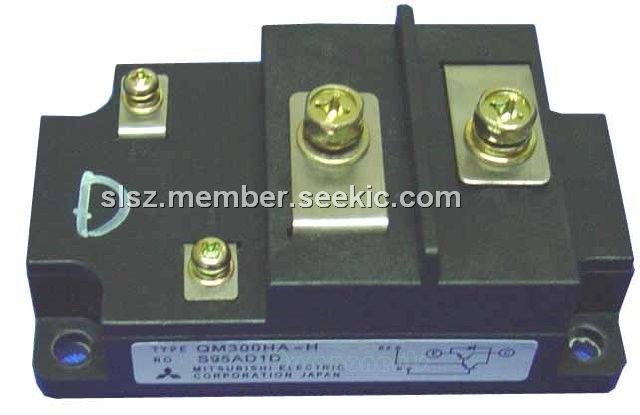

The QM300HA-H is a MITSUBISHI transistor module which is used for high power switching.
Parametrics
QM300HA-H absolute maximum ratings: (1)Collector-emitter voltage: 600 V; (2)Collector-emitter voltage: 600 V; (3)Collector-base voltage: 600 V; (4)Emitter-base voltage: 7 V; (5)Collector current: 300 A; (6)Collector reverse current: 15 A; (7)Collector dissipation: 100 W; (8)Base current: 18 A; (9)Surge collector reverse current (forward diode current): 300 A; (10)Junction temperature: -40 to + 150 ℃; (11)Storage temperature: -40 to + 150 ℃; (12)Isolation voltage: 2500 V; (13)Mounting torque: 20 to 30 kg·cm; (14)Weight: 470 g.
Features
QM300HA-H features: (1)IC Collector current: 300A; (2)VCEX Collector-emitter voltage: 600V; (3)hFE DC current gain: 750; (4)Insulated Type; (5)UL Recognized: Yellow Card No. E80276 (N), File No. E80271.

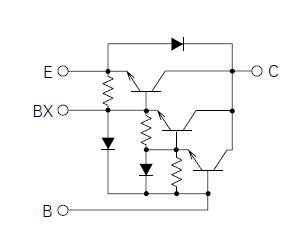

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM300HA-H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
QM300HA-HB |
Other |
|
Data Sheet |
Negotiable |
|
||||
