Product Summary

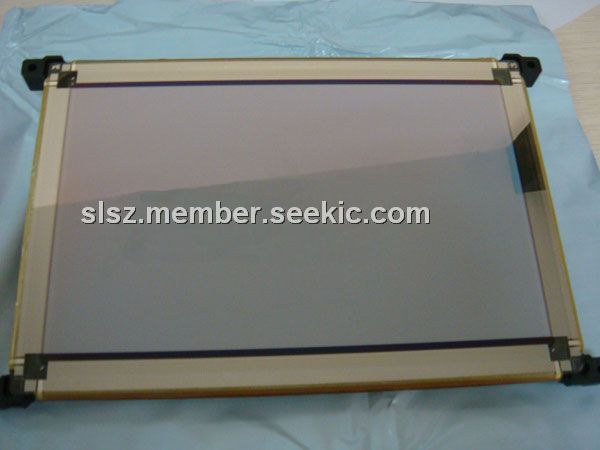

The LJ640U32 is a EL display module.

Parametrics

LJ640U32 specifications: (1)Display size: 23 [8.9] cm; (2)Outline dimensions (W × H × D) 246.0 × 158.0 × 26.0*1 mm; (3)Dot format (H × V): 640 × 400 dot; (4)Weight: 450*1 g; (5)Dot pitch (H × V): 0.30 × 0.30 mm; (6)Baseplate structure: YES; (7)Active area (H × V): 191.9 × 119.9 mm; (8)Luminance: 115 cd/m2; (9)Operating temperature: -5 to +55 ℃; (10)Supply voltage: 5, 12 V; (11)Storage temperature: -40 to +80 ℃; (12)Power consumption panel & backlight: 11 000 mW; (13)Survival temperature: -20 to + 65 ℃.

Features

LJ640U32 features: (1)23 cm [8.9] display; (2)Wide viewing angle.

Diagrams

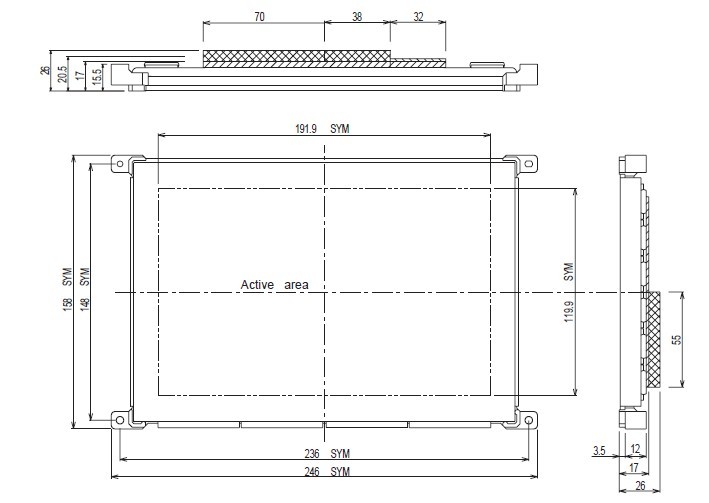

LJ640U32 outline dimensions
