Product Summary

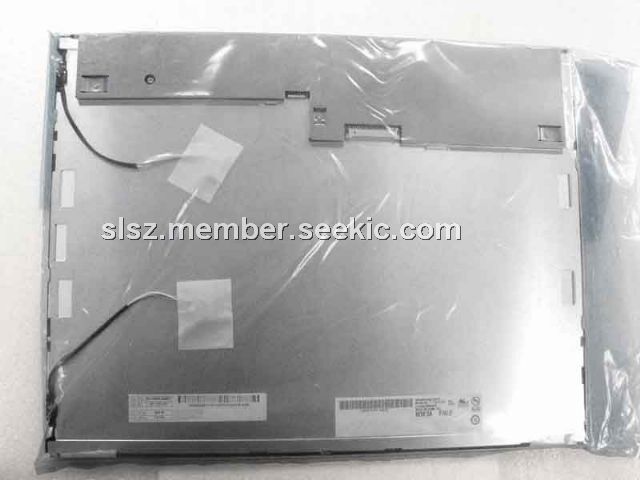

The G150XG01 is a TFT-LCD Module. It is applied to the 15.0 inch Color TFT-LCD Module. The display supports the XGA (1024(H) × 768(V)) screen format and 262,144 colors (RGB 6-bits data). All input signals are 1 Channel LVDS interface compatible. The G150XG01 does not contain an inverter card for backlight. It is designed for industrial applications.
Parametrics
G150XG01 absolute maximum ratings: (1)Logic/LCD Drive Voltage VDD: min=-0.3 [Volt], max=+3.6 [Volt]; (2)Input Voltage of Signal Vin: min=-0.3 [Volt], max=+3.6 [Volt]; (3)CCFL Current ICFL: min=2.5 [mA] rms, max=8.5 [mA] rms; (4)Operating Temperature TOP: min=0, max=+50 [℃]; (5)Operation Humidity HOP: min=20[%RH], max=85[%RH]; (6)Storage Temperature TST: min=-20[℃], max=+60[℃]; (7)Storage Humidity HST: min=5[%RH], max=90[%RH]; (8)Vibration: max=1.5 / 10-200 [G / Hz]; (9)Shock: max=50/20 [G / ms].
Features
G150XG01 features: (1)XGA 1024(H) × 768(V) resolution; (2)50,000 hours lamp life; (3)2 CCFLs (Cold cathode Fluorescent Lamp); (4)High contrast ratio, high aperture ratio; (5)Wide viewing angle; (6)High-speed response; (7)Low power consumption.
Diagrams
 |
