Product Summary

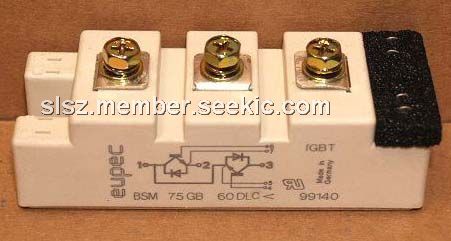

The BSM75GB60DLC is a 600V IGBT module.

Parametrics

BSM75GB60DLC absolute maximum ratings: (1)collector-emitter voltage:600V; (2)repetitive peak collector current:150A; (3)total power dissipation:355W; (4)gate-emitter peak voltage:±20V; (5)DC forward current:75A; (6)repetitive peak forward current:150A; (7)insulation test voltage:2.5kV; (8)DC-collector current:Tc= 75℃:75 A,Tc= 25℃:100 A.

Features

BSM75GB60DLC features: (1)collector-emitter saturation voltage:2.20V; (2)gate threshold voltage:4.5V to 6.5V; (3)input capacitance:3.3nF; (4)reverse transfer capacitance:0.3nF; (5)gate-emitter leakage current:400nA.

Diagrams
