Product Summary

The BSM15GP60 is an IGBT-Module.

Parametrics

BSM15GP60 absolute maximum ratings: (1)repetitive peak reverse voltage: 1600V; (2)RMS forward current per chip: 40A; (3)DC forward current per chip: 40A; (4)DC forward current: 15A; (5)surge forward current: 300A; (6)I2t value: 450A2s.

Features

BSM15GP60 features: (1)forward voltage: 0.95 to 1V; (2)threshold voltage: 0.8V; (3)slope resistance: 10.5mΩ; (4)reverse current: 2mA; (5)lead resistance, terminals-chip: 8mΩ.

Diagrams

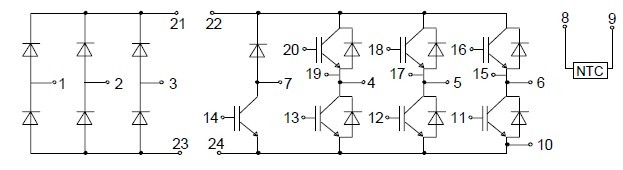

BSM15GP60 Circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BSM15GP60
BSM15GP60

Infineon Technologies

IGBT Modules 600V 15A PIM

Data Sheet

0-1: $39.34
1-10: $35.41
