Product Summary

The AV25-48S05 is an Isolated and Regulated 25 WATT Modular DC/DC Converter.

Parametrics

AV25-48S05 absolute maximum ratings: (1)Input Voltage, Nominal: 24VDC, 48VDC; (2)Input Voltage Ranges: 18-36, 36-75VDC; (3)Input Surge Voltage: 50V (24V Models), 100V (48V Models), 100 mS duration.

Features

AV25-48S05 features: (1)Wide 2:1 Input Range; (2)High Efficiency; (3)Regulated Outputs; (4)500V Isolation; (5)Full EMI Shielding.

Diagrams

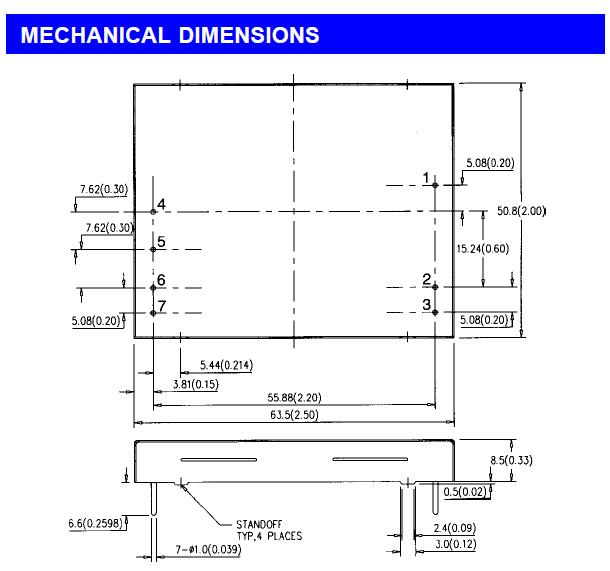

AV25-48S05 dimensions
