Product Summary
The 6MBI25J-120 is an IGBT module.
Parametrics
6MBI25J-120 absolute maximum ratings: (1)collecter-emitter voltage: 1200 V; (2)gate-emitter voltage: ±20 V; (3)collector current: 25 A; (4)max. power dissipation: 220 W; (5)operating temperature: +150 ℃; (6)storage temperature: -40 to +125 ℃; (7)isolation voltage: 2500 V.
Features
6MBI25J-120 features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.

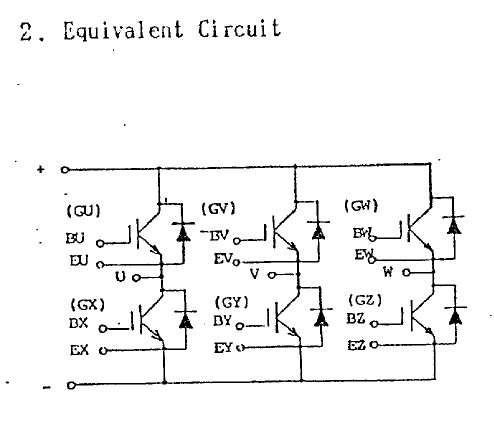

Diagrams
 |
